OCR Cash Bill

Overview

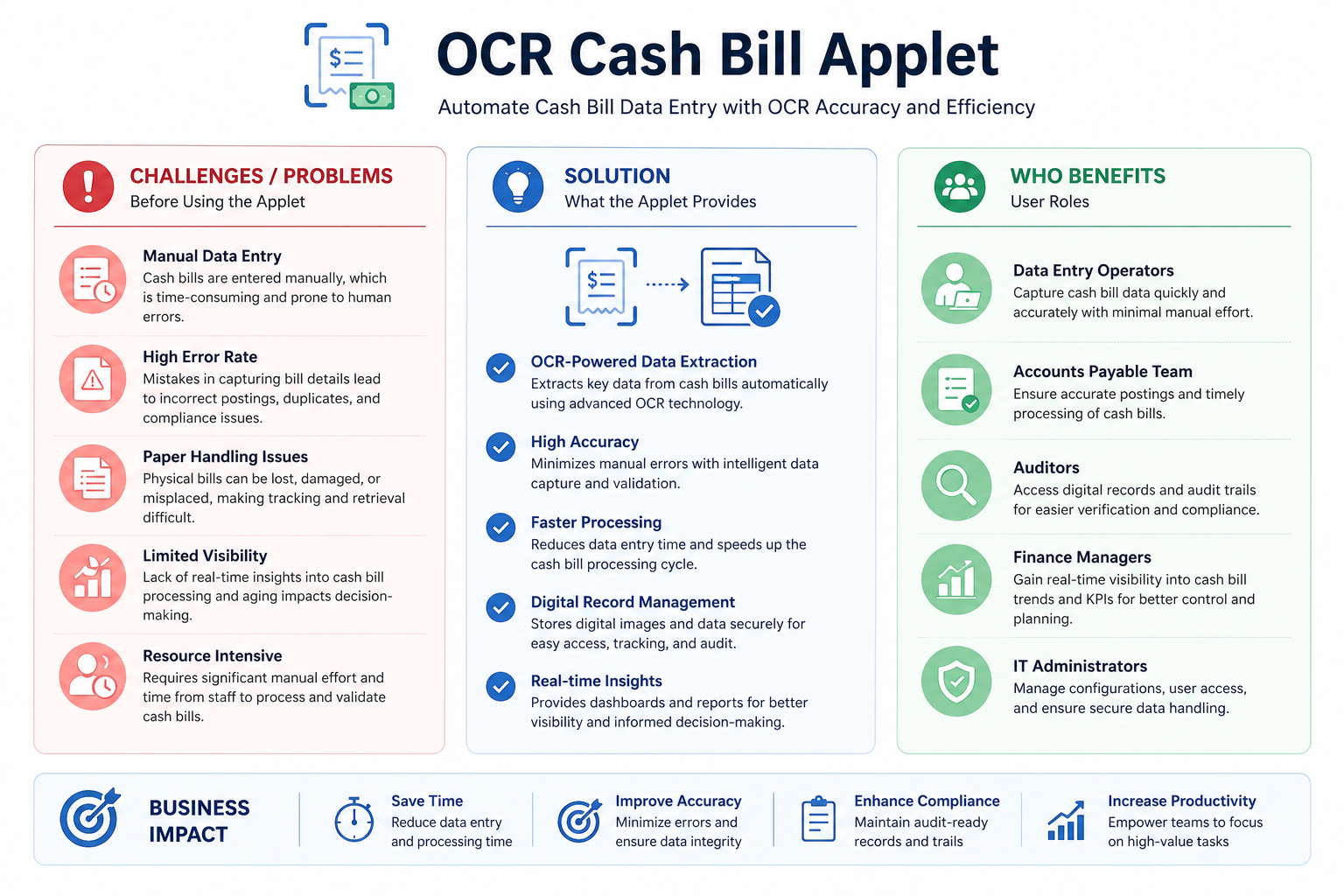

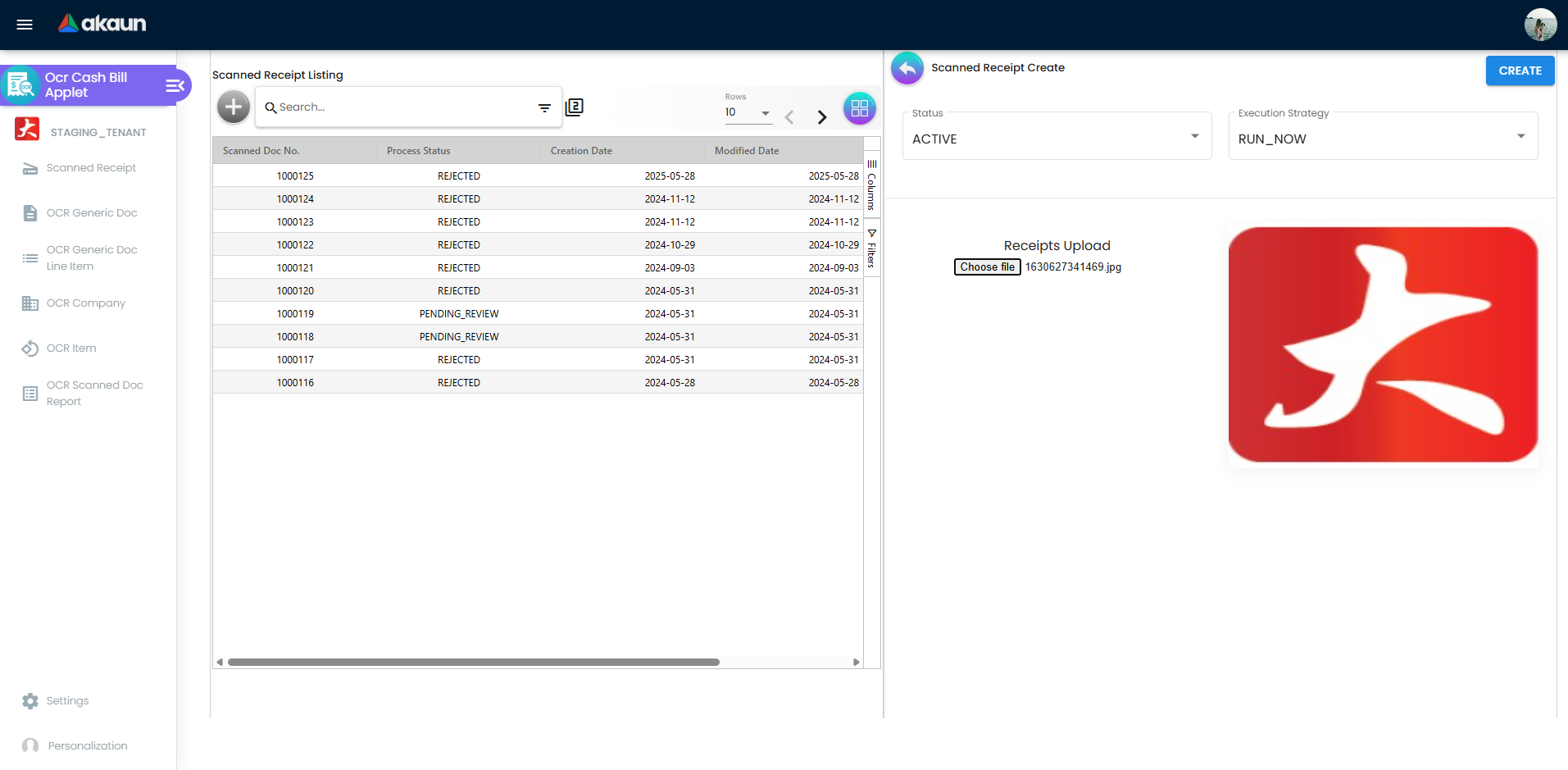

OCR Cash Bill is the back-office console for a receipt-to-points loyalty programme. A member photographs a cash bill issued by some other business — a pharmacy, a clinic, an electronics shop — and uploads it from the e-commerce storefront or in store. The platform runs the image through AWS Textract, turns the extracted text into a structured OCR Generic Document, matches the merchant and each line item against reference data the applet maintains, and — once a reviewer finalises the document — converts the matched lines into membership points on the member’s card.

This applet is where a reviewer looks at what the machine read, corrects the item mapping, rejects the fakes and the duplicates, and presses FINAL. It is the only screen on which any of that is visible.

Where it fits

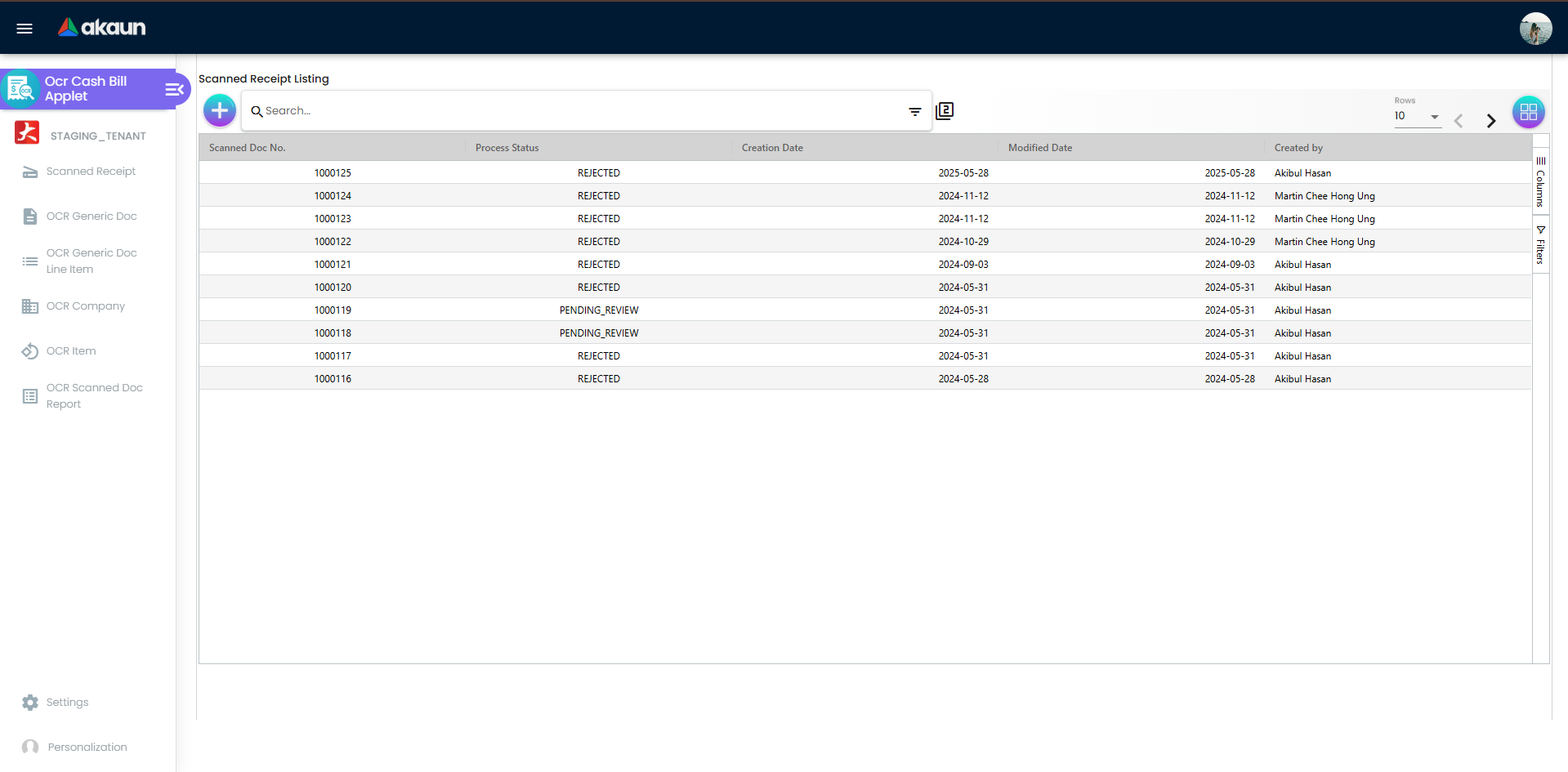

Screens and menus

Eight screens are routed. Six are linked from the sidebar; two are routed but commented out of menu-items.ts and are reachable only by typing the URL.

Two broken links are visible in the chrome rather than the content:

• The shared settings sidebar hard-codes Permission Wizard, Release Notes and Audit Trail; none of the three is registered in app.routing.ts, so all three 404. (Permission Set, User Permission and Role Permission are routed and work.)
• Personalization → Field Settings 404s: personalizationItems names field-settings, but that route is registered under settings, not under personalization.

Configuration

Before you can use it

Applet settings

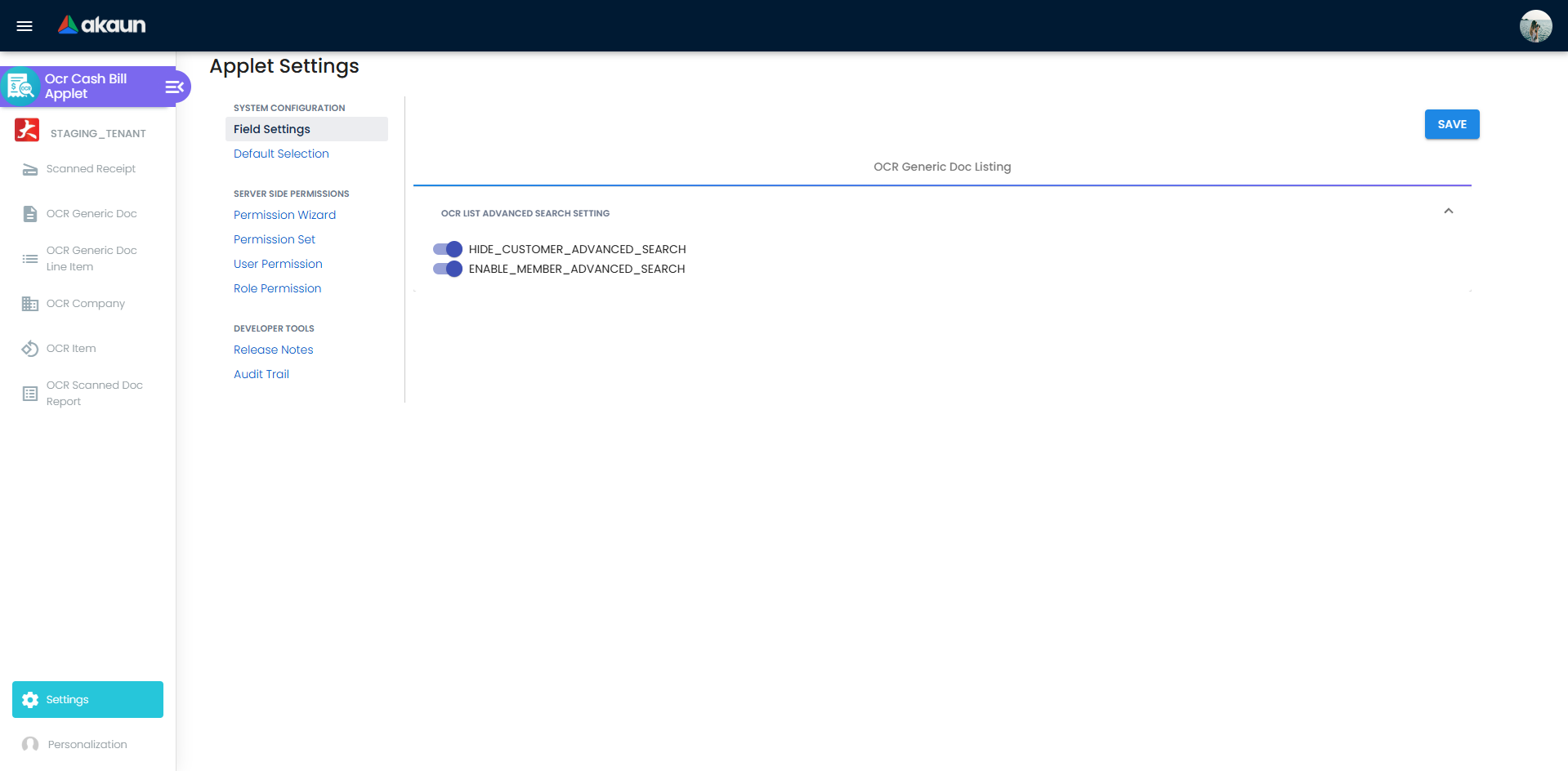

Settings › Field Settings. This applet does not use the shared Field Configuration screen that most document applets use — it has its own two-toggle screen, and both toggles change what the listing’s advanced search offers you rather than what it looks like. Both are off until somebody saves them, and an applet with no saved settings row behaves as though both are off. How settings are stored and who they apply to.

The first toggle, HIDE_CUSTOMER_ADVANCED_SEARCH, takes the Customer criterion off the OCR Generic Doc listing’s advanced search. It is a hide toggle and you can see what it did immediately, but one consequence is not on the screen: the criterion’s label, data type, form control and options are all deleted from the search model before the panel renders, so a saved search that used Customer stops filtering by it rather than warning you. Absent means shown — the consuming code simply does not take the branch (advanced-search-ocr.component.ts L49).

The second changes what the panel can do, so it gets a row:

Both keys are read by exactly one component — the listing’s search panel. No other screen consults them, and neither reaches the server.

On the screen and doing nothing

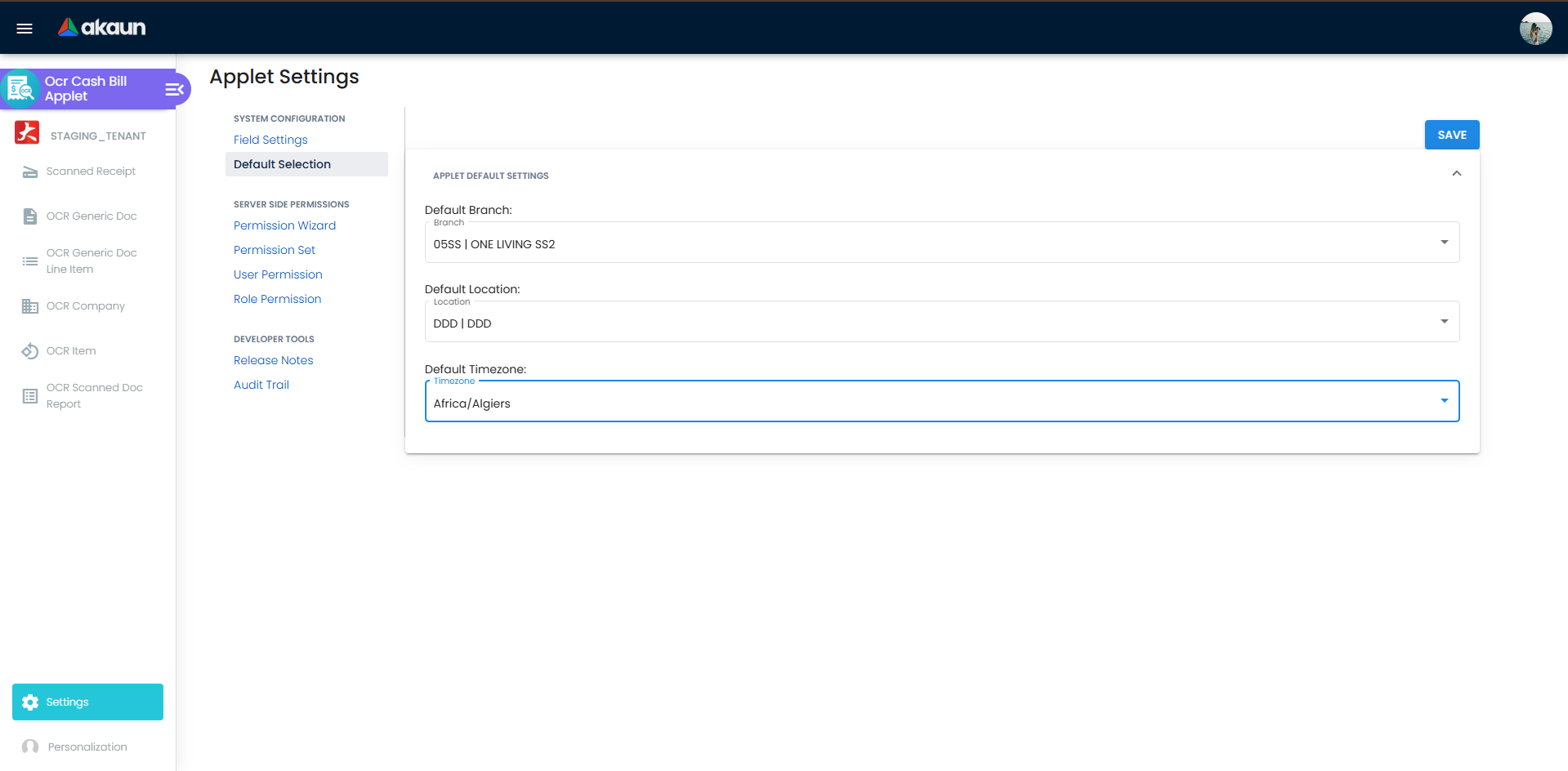

Settings › Default Selection renders four controls — Default Branch, Default Location, Default Company and Default Timezone — and saves all four into the applet’s settings. No screen in this applet reads any of them. Picking a branch does fill Default Company from that branch’s company and Default Location from its main location, so the four values stay internally consistent; they simply have no consumer, and a new OCR document does not open pre-filled with them.

• DEFAULT_TIMEZONE is the one to be careful about, because a time zone is the kind of setting a reader will assume is being applied to the receipt dates they are looking at. It is not applied anywhere.
• DEFAULT_BRANCH, DEFAULT_LOCATION and DEFAULT_COMPANY behave the same way. The only code that reads them back is the settings screen itself, re-displaying what you saved.

Grepped across the applet project, blg-shared-utilities and the Java backend at the commits in sources.settings: below — outside the two settings screens and the model interface, no reference.

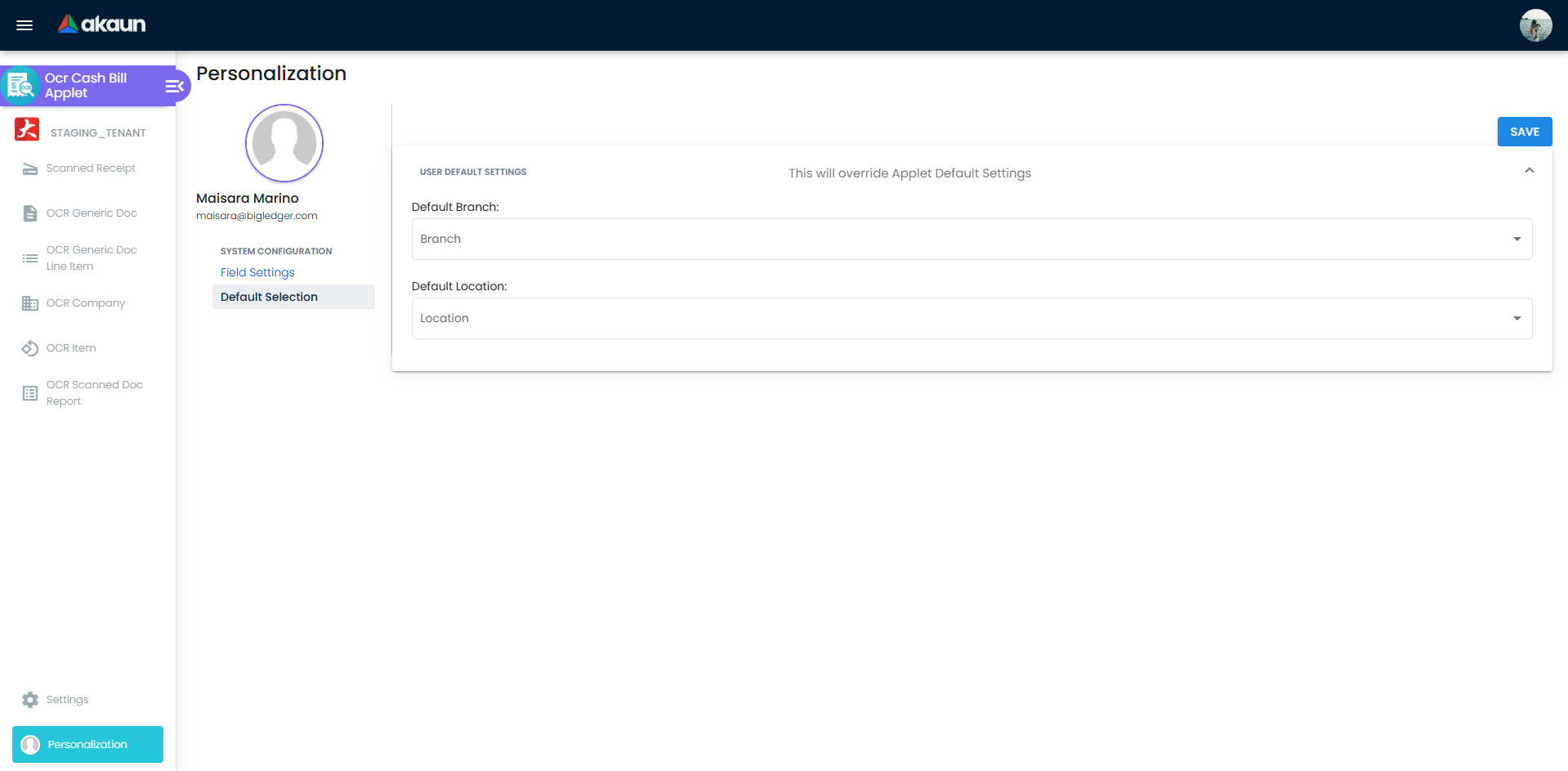

Personalization › Default Selection is worse than unread: it cannot save. The component is routed directly, but it is written to receive its data through an @Input() and to hand its result back through an @Output() — and Angular binds neither on a component named in a route. The subscription that would have populated its working copy is commented out, so the first change to either drop-down throws TypeError: Cannot read properties of undefined (reading 'bl_applet_exts') and the SAVE button emits into nothing. Treat the screen as absent. (Recorded as a product finding; this page documents what happens today.)

Settings in other places that control this applet

Four validation thresholds are read by the backend, not by the applet, from app_cfg_main rows on the tenant database where code = 'OCR_GENERIC_DOC_VALIDATION' and txn_type is the key below. The value is taken from the row’s descr column and parsed as an integer; an absent or unparseable row falls back to the default.

Three further thresholds are compiled in and cannot be configured at all: the verification pass mark (60, mean Textract confidence across the fields used), the merchant name-similarity threshold (0.9) and the item-matching threshold (0.7).

Who can change what

Client-side permissions this applet defines: none. The registry holds zero active client-side permission definitions for applet code OCR Cash Bill, so neither Field Settings toggle can be reopened for one team and closed for another — each is an all-or-nothing tenant-wide switch, and anyone who can open the applet’s Settings section can flip it. If you need two groups of back-office staff to see different search panels, this applet cannot do it.

Server-side permissions are per endpoint, from TntOcrPermissions. Each of the five resources — OCR Company, OCR Branch, OCR Item, OCR Scanned Doc, OCR Generic Document — has the same seven-verb set (_OWNER, _ADMIN, _MEMBER, _CREATE, _UPDATE, _DELETE, _READ). Two are worth singling out:

• Pressing FINAL from the back office requires API_TNT_DM_OCR_GENERIC_DOCUMENT_OWNER, _ADMIN or _UPDATE on that document.
• The same action on the member-facing endpoint is authorised differently: it checks only isUserLoginEntity(caller, entity_hdr_guid) — that the caller is the entity on the document — and no OCR permission at all.

Fields

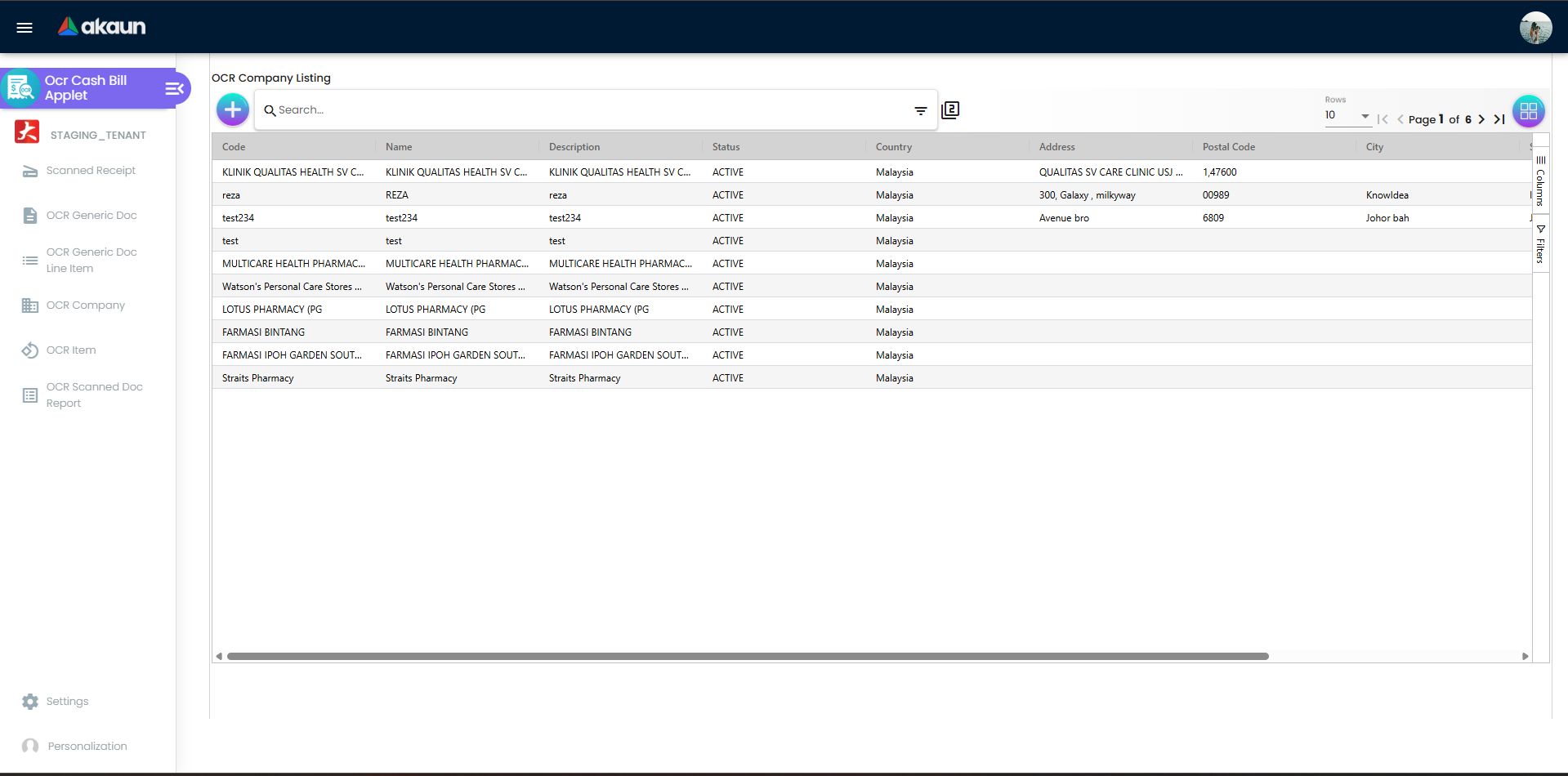

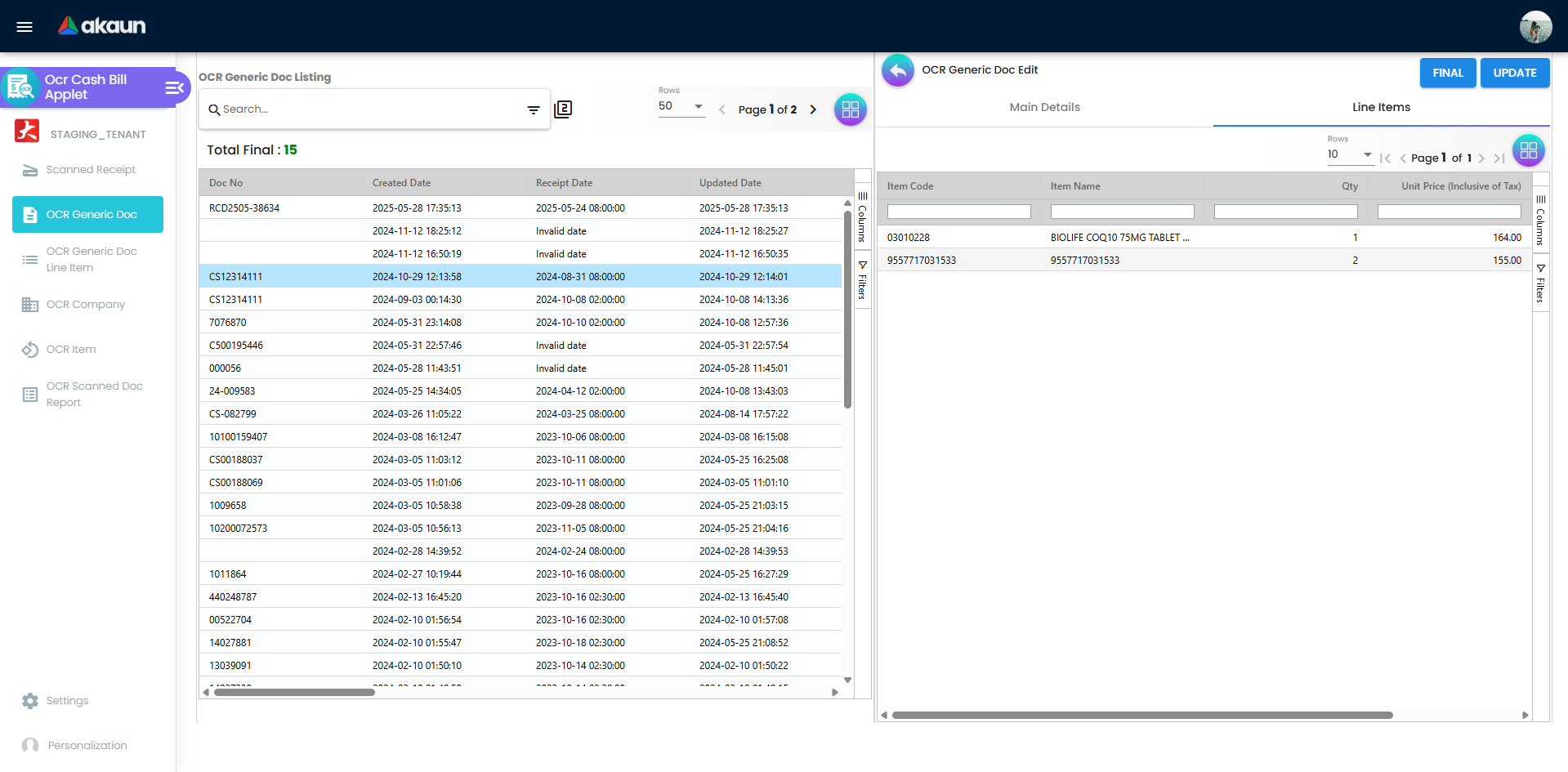

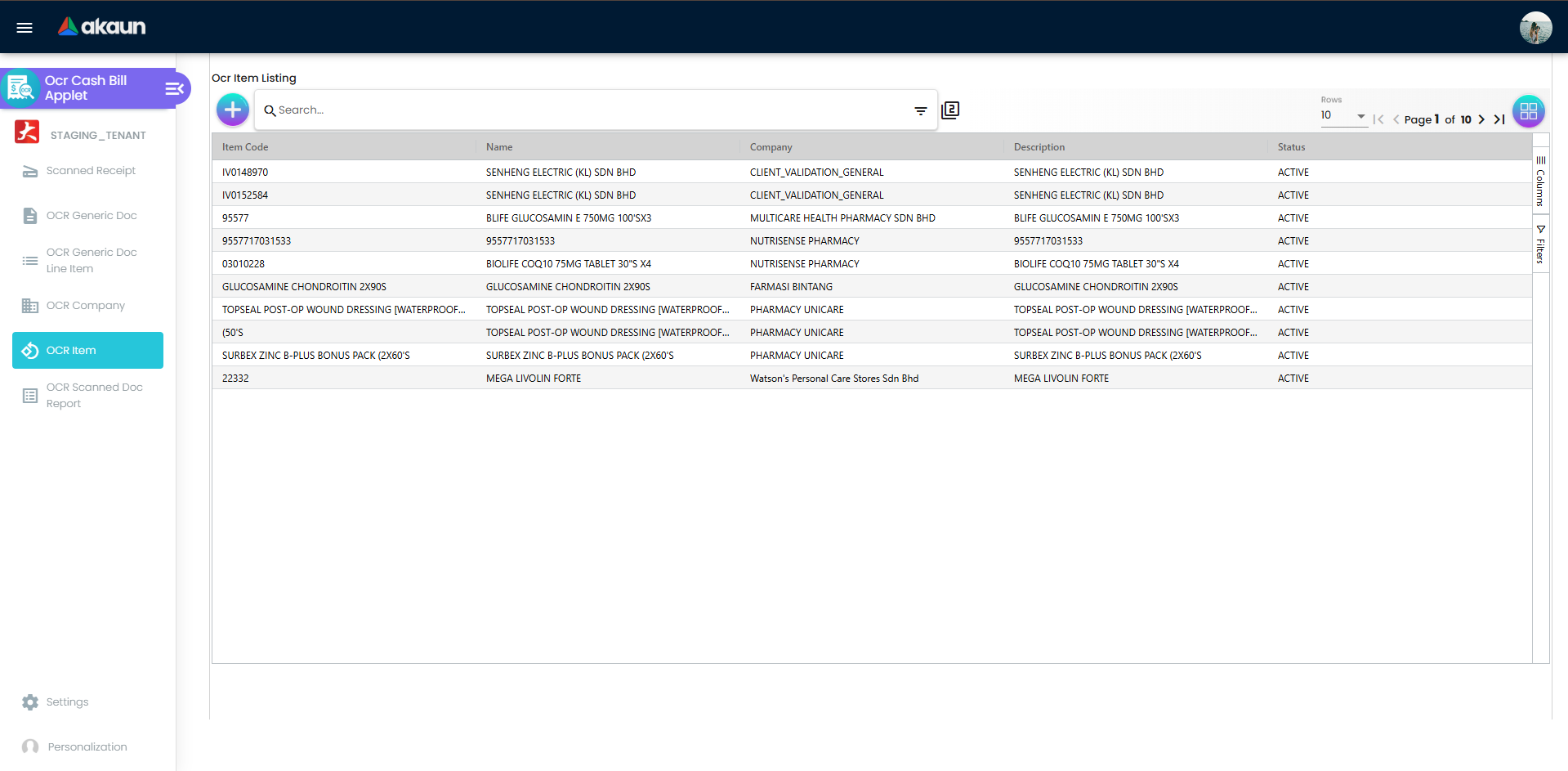

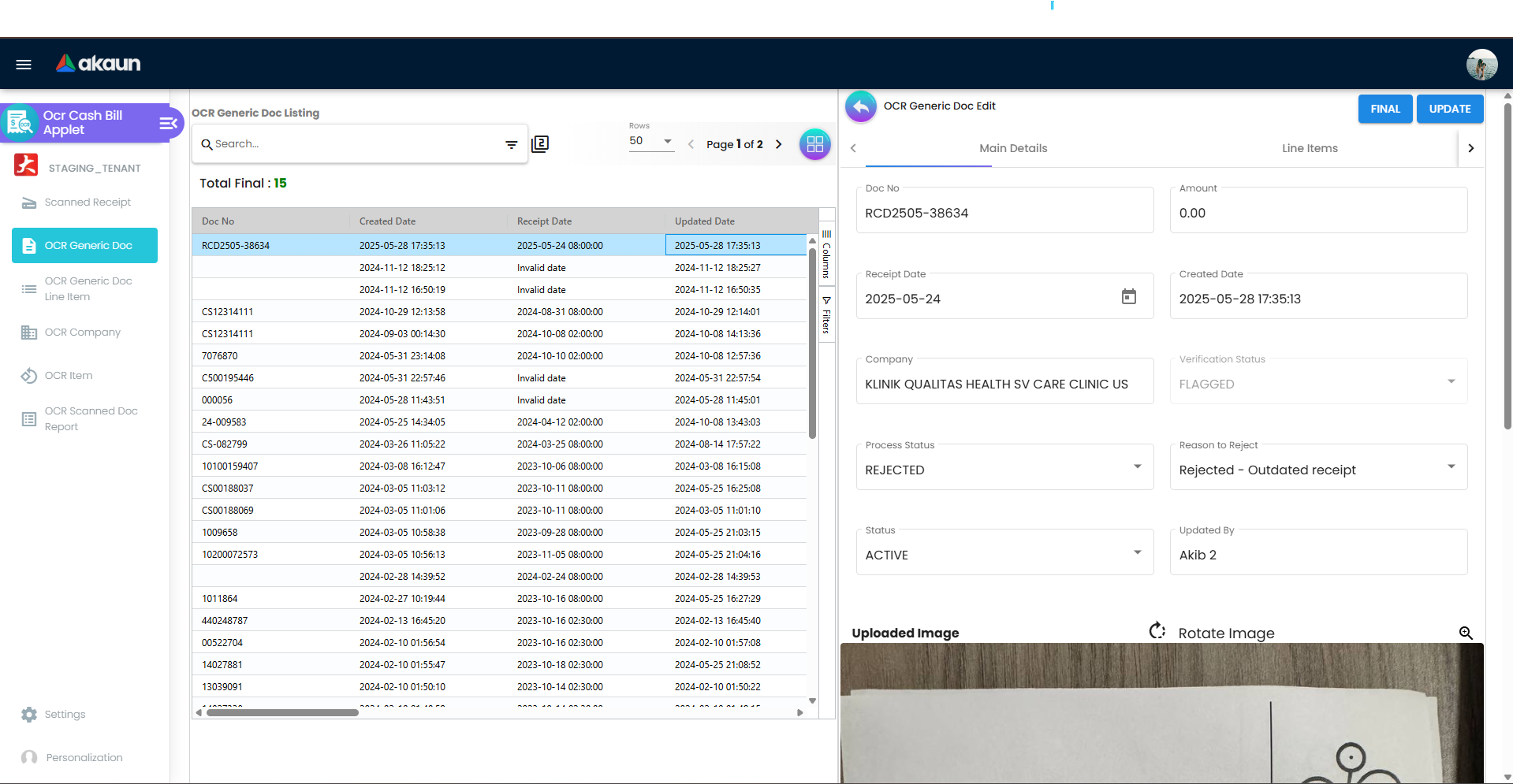

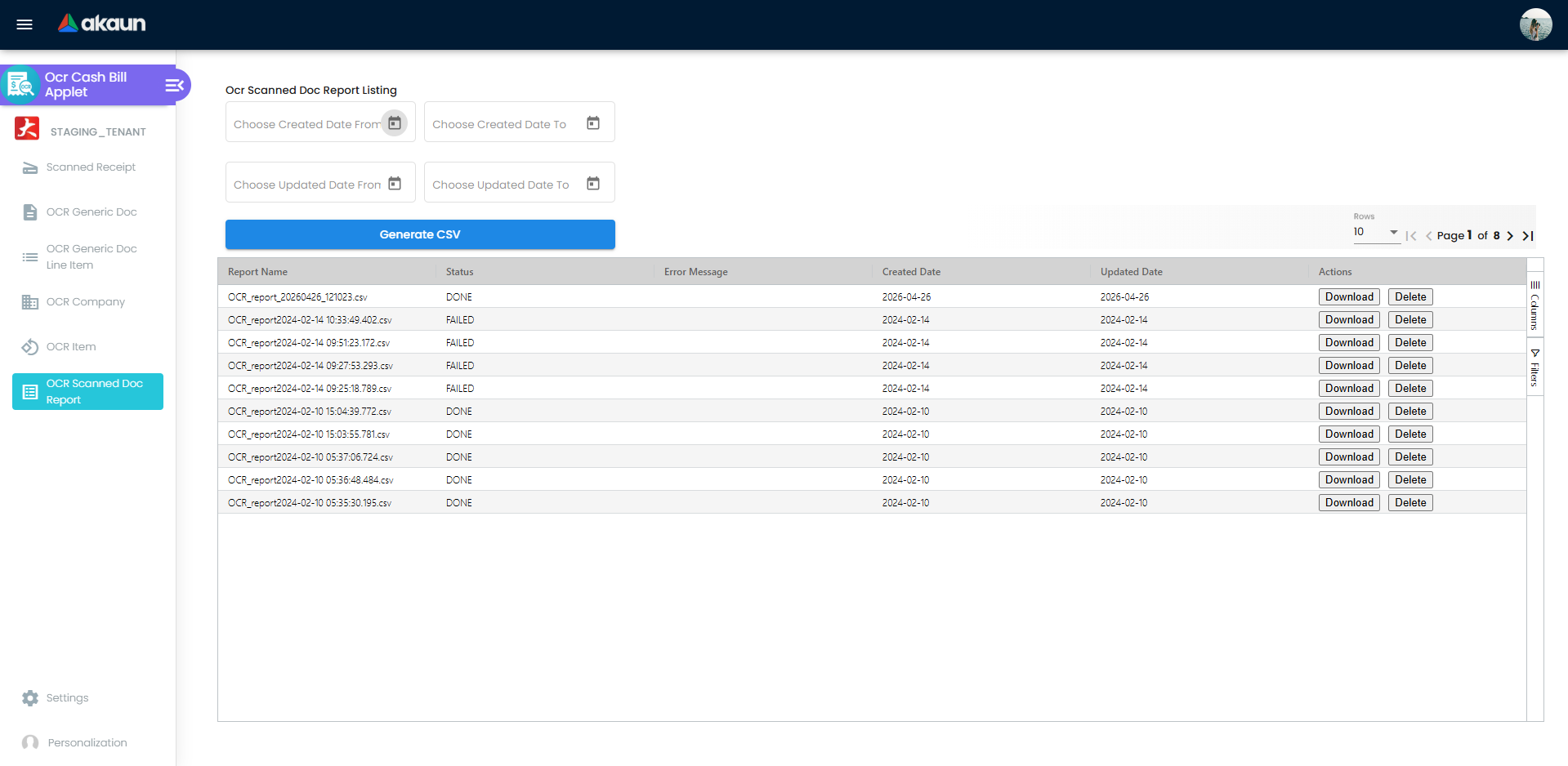

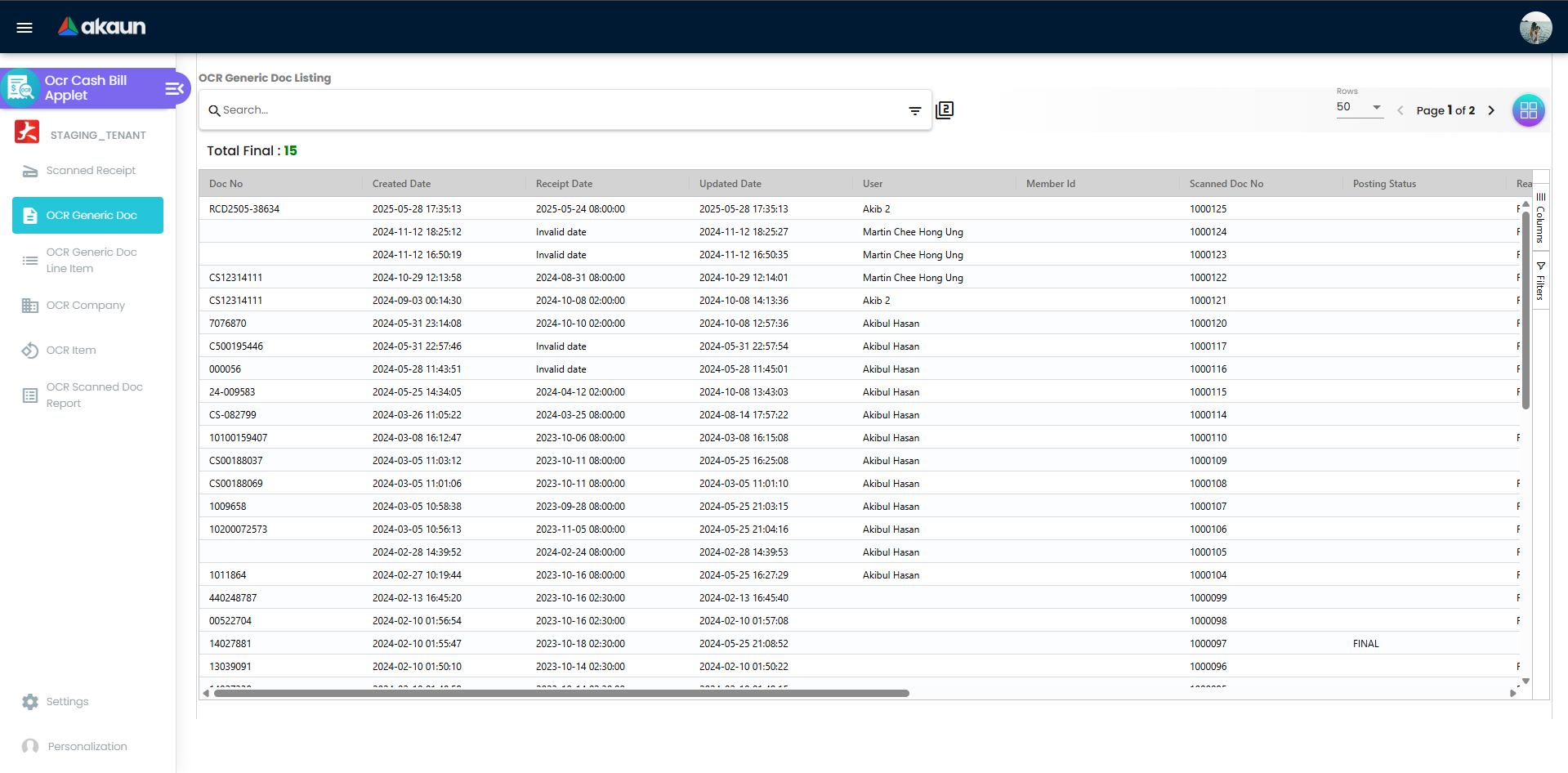

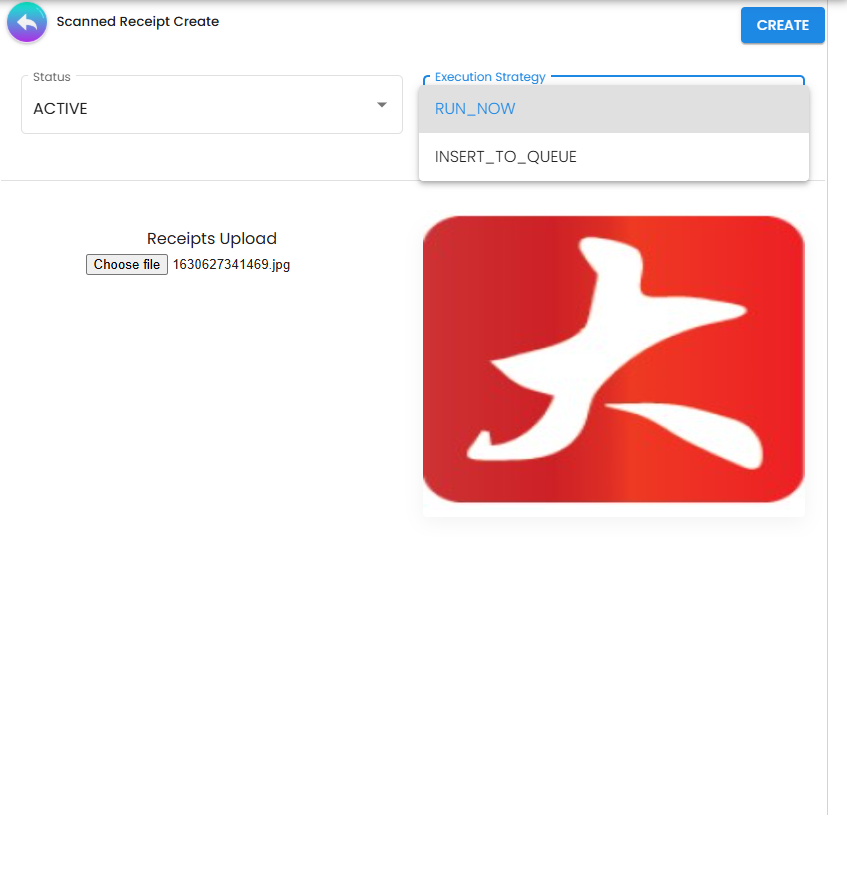

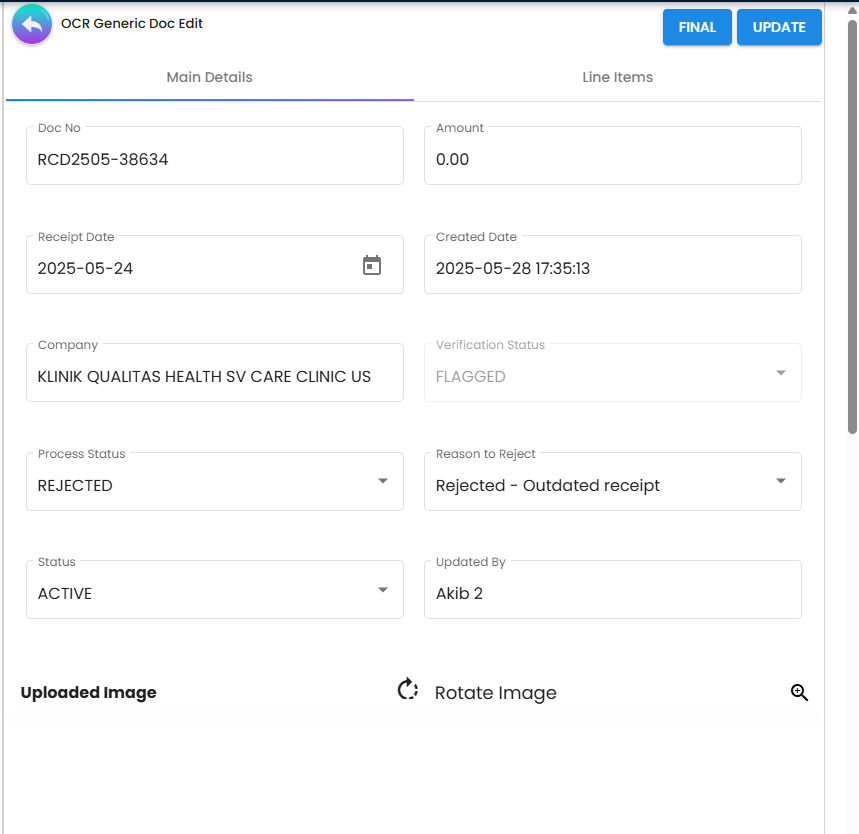

OCR Generic Doc — Main Details

The six rejection reasons are fixed in the applet, not configurable: Outdated receipt, Non-related receipt, Duplicated receipt, Incomplete details, Exceeded Monthly Submission Limit (Max. 7 receipts per month), More than 1 receipt. The parenthetical “Max. 7” in the fifth is a label, not the limit — the limit is the configurable OCR_SUBMISSION_LIMIT_DURING_PERIOD above, and the label does not follow it.

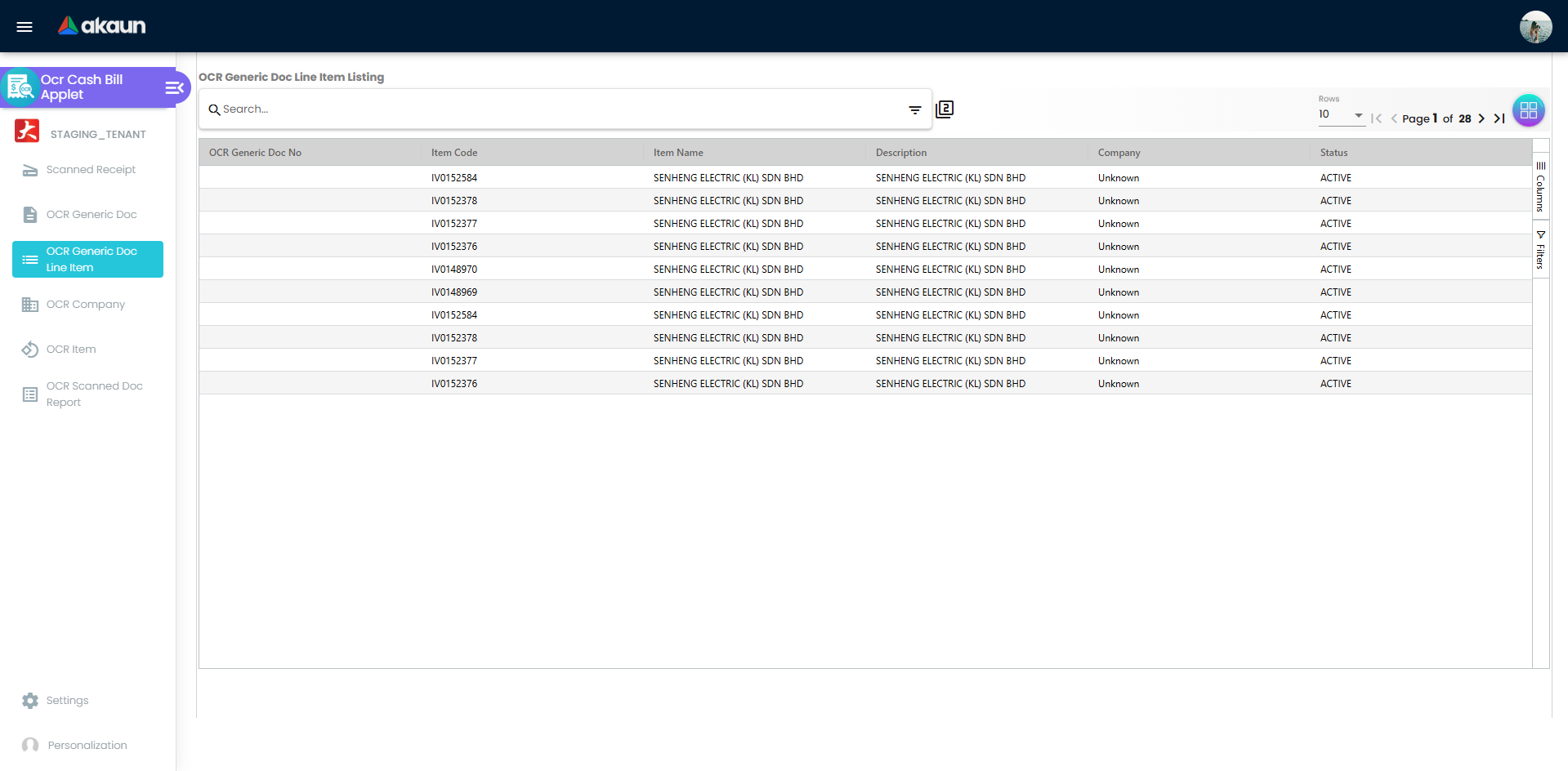

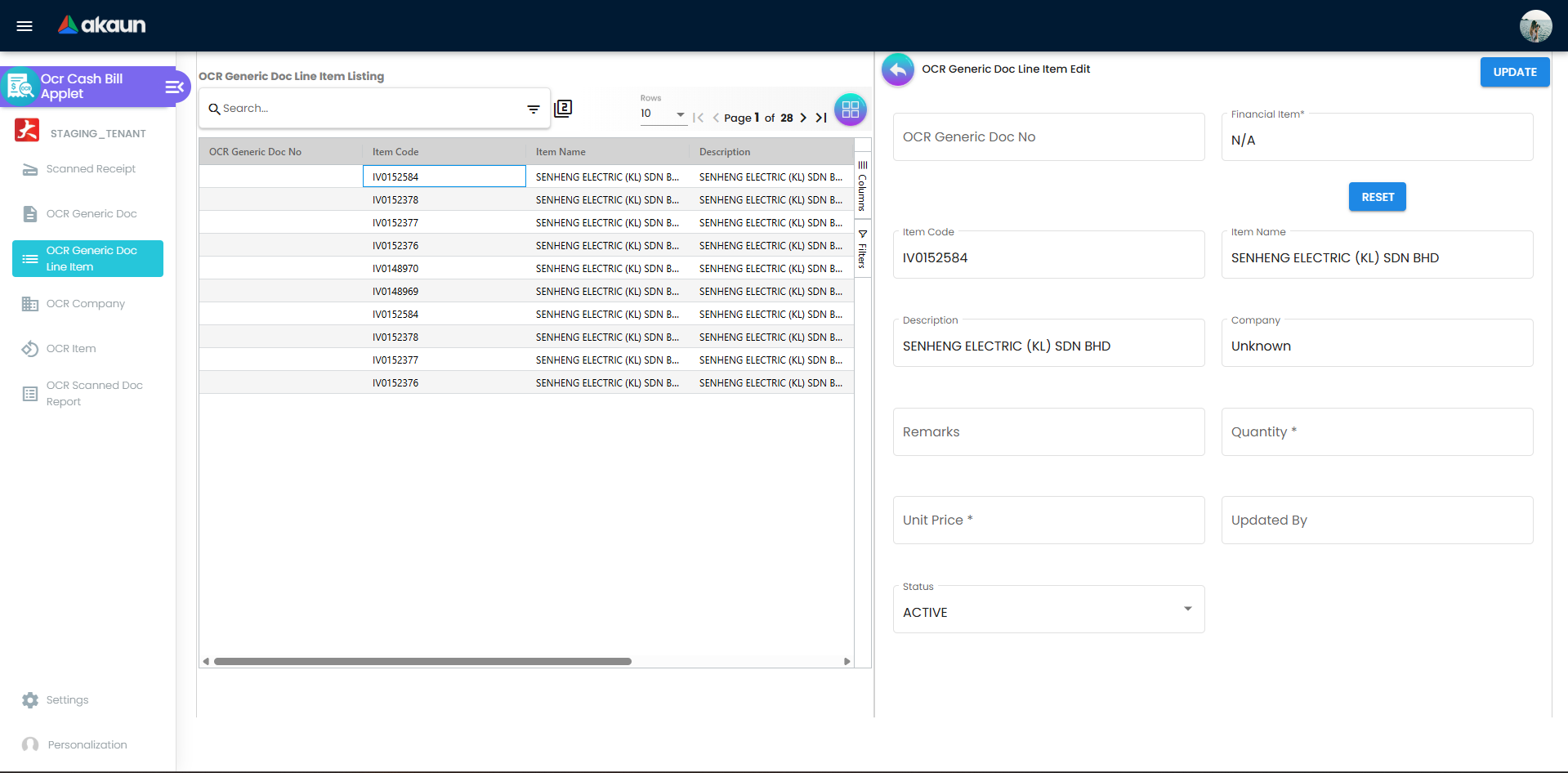

OCR Generic Doc Line Item

Lifecycle and effects

Posting proof

The pipeline

    flowchart TD
    U["Member uploads a receipt photo<br/>(storefront or in store)"] --> SD["bl_ocr_scanned_doc_hdr / _line<br/>created by the upload endpoint"]
    SD -->|queue OCR_SCANNED_DOC_PROCESSOR| TX["AWS Textract AnalyzeExpense<br/>algorithm_provider = AWS_TEXTRACT"]
    TX -->|queue OCR_GENERIC_DOC_PROCESSOR| GD["bl_ocr_generic_doc_hdr / _line"]
    GD --> M["Merchant match · item match · validation<br/>confidence, duplicates, limits, age"]
    M --> RV["Reviewer opens OCR Generic Doc<br/>corrects the item mapping"]
    RV -->|FINAL| PP["BLG_OCR_GENERIC_DOCUMENT_PRIMARY_PROCESSOR"]
    PP -->|enabled subscribers only| PB["Membership points from price book"]
    PP -->|enabled subscribers only| PU["Point update from line point_amount"]
    PB --> PT["bl_crm_membership_points_txn_line<br/>posting_membership = POSTED"]
    PU --> PT
    PT --> BAL["Membership control account<br/>and current balance updated"]


What the server decides before a human sees it

Extraction. OcrTextractAnalysisService calls Textract’s AnalyzeExpense and maps summary fields to the header and line-item groups to the lines. Each mapped value carries a confidence that is itself the mean of Textract’s type, label and value confidences.

Verification status. The header’s confidence_level is the mean confidence across the fields actually used. 60 or above is PASS, below is FAIL — the same rule is applied independently to each line. Afterwards, if the extracted header total does not exactly equal the sum of the line amounts (or the header total is missing), a PASS is downgraded to FLAGGED.

Merchant matching. The extracted merchant name is compared against existing OCR Companies at a 0.9 similarity threshold; below that a new OCR Company is created. Two named pharmacy chains are special-cased by name in specificFillAndValidateByCompany — for those merchants, repeated lines for the same OCR item are collapsed into one line with the quantity set to the repeat count, the remaining lines marked DELETED, and the printed amount reinterpreted as a unit price.

Item matching. Each scanned line is scored against every OCR Item belonging to that merchant. The score combines item code (weight 10), item name (weight 10) and unit price (weight 3), with the string comparisons taking the better of Jaccard and Levenshtein similarity on upper-cased values. The best candidate wins if it scores 0.7 or higher; otherwise a new OCR Item is created and linked with a score of 1.0. If the winning OCR Item already has a financial-item link, that link is copied onto the line immediately.

Duplicate detection. If the receipt number was extracted, a duplicate is any existing document with the same number and merchant within ±1 hour of the same receipt date. If it was not, the match is on merchant, ±1 hour, the same set of scanned item codes and an identical line total. A match sets the scanned receipt to DUPLICATE / FAIL and reuses the existing document rather than creating a second one.

Auto-rejection. Four rules run, and only the first one that fires is recorded: monthly submission limit reached; receipt older than the configured window or dated more than a day in the future; more than one of receipt-number, date and total detected (read as “more than one receipt in the photo”); or incomplete details — no merchant, no receipt date, or any line without a matched OCR item. Any of them sets the scanned receipt to REJECTED / FAIL and writes the reason onto the header.

Status model

What FINAL actually runs

Pressing FINAL first resolves the member: if the header has no membership_hdr_guid, the applet looks up the membership card by the document’s login subject and entity, writes it back to both the generic document and the scanned receipt, then calls PUT .../ocr/generic-documents/update-posting-status/backoffice-ep/{guid}. On both paths it also sets rejection_reason to null — finalising a rejected receipt erases the reason it was rejected.

The backend saves the status and, only when it equals FINAL, enqueues BLG_OCR_GENERIC_DOCUMENT_PRIMARY_PROCESSOR. That processor does no work of its own: it reads the enabled subscriber job templates for its queue code and enqueues each one, merging the template’s fiCompanyGuid, fiBranchGuid and priceBookHdrGuid into the event. Two subscribers exist:

• BLG_OCR_GENERIC_DOCUMENT_MEMBERSHIP_POINTS_PRICE_BOOK_PROCESSOR — the normal path. It requires all three configured GUIDs and throws FI_COMPANY_GUID_IS_NULL, FI_BRANCH_GUID_IS_NULL or PRICE_BOOK_HDR_GUID_IS_NULL if any is missing. It evaluates the price book’s single-line rules against each document line, computes the point value, writes the points back onto the line (point_type = REWARD, currency, validity window, amount), creates the membership points transaction lines, marks posting_membership = POSTED and finally sets the scanned receipt to APPROVED. All of that runs in one transaction.
• OCR_GENERIC_DOCUMENT_POINT_UPDATE_PROCESSOR — an alternative that skips the price book entirely and creates one points line per document line that already has a point_amount.

The two write different columns on bl_crm_membership_points_txn_line: the price-book processor fills ocr_doc_hdr_guid / ocr_doc_line_guid, the point-update processor fills the generic doc_hdr_guid / doc_line_guid. Anything reading points back to their source receipt has to handle both.

The learning link

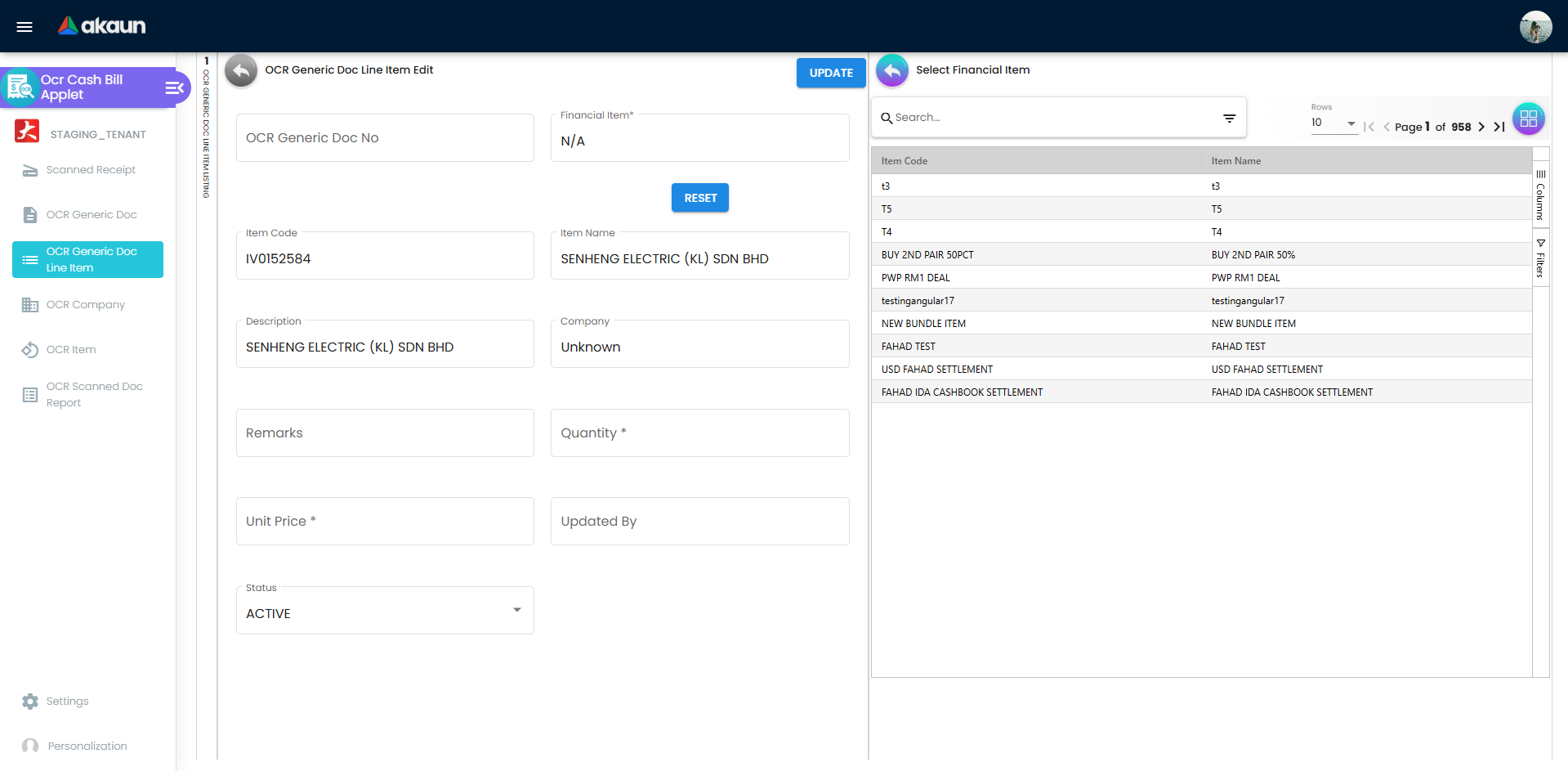

Setting a line’s Financial Item does more than fix that line. OcrGenericDocumentService creates a bl_ocr_fi_mst_item_link row if one does not exist, stamps fi_item_hdr_guid onto the OCR Item itself, and then back-fills every other non-FINAL generic-document line that carries the same OCR item and the same merchant and has no financial item yet. One correction can therefore change many open documents at once, and it is the mechanism by which a merchant’s catalogue becomes self-maintaining.

Related applets

• Pricebook — the price book named on the job-template subscription is what converts a matched line into a number of points; its Calculation Logic is honoured by this processor and by almost nothing else.
• Membership Admin — the member’s card, and the balance the points land in.
• The points currency the price-book treatment names is defined in Membership Admin’s PTS CCY Module.
• Item Maintenance — the financial items OCR items are mapped onto.
• Scheduler — job-processor plumbing; the OCR pipeline is entirely queue-driven and nothing here runs synchronously with the reviewer’s click.

Troubleshooting

Related documentation

• Membership applets — the rest of the loyalty family.
• Membership module — where this sits in the product.
