Car Workshop Applet
Overview

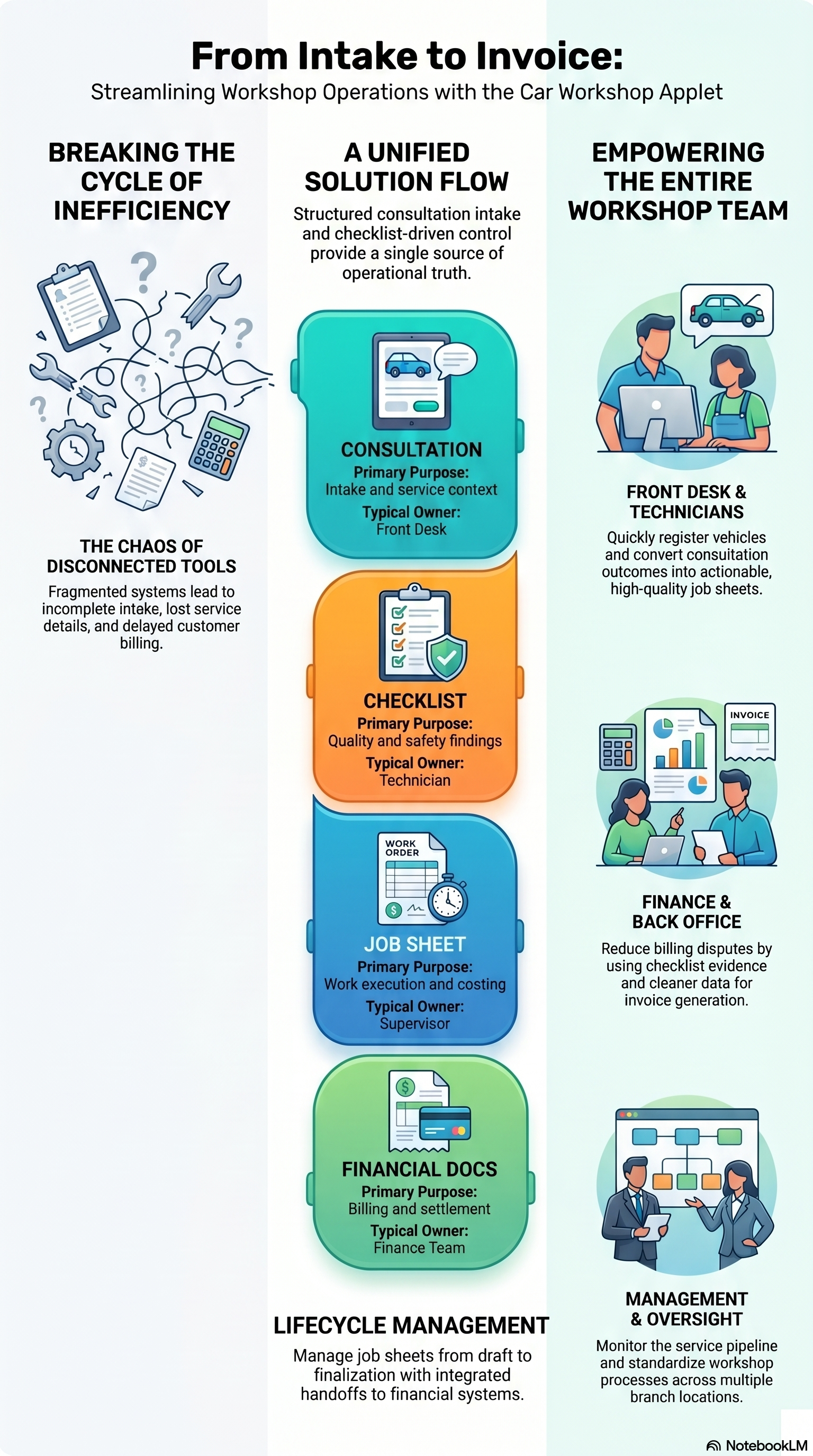

The Car Workshop Applet runs a vehicle service case from intake to billing. Its own record is the consultation (bl_asv_consultation_hdr): one branch, one vehicle, one consultant, an optional member, a list of customer requests and three inspection checklists (pre-inspection, safety, quality control) with photos. From inside a consultation the service advisor raises the financial documents — sales quotation, jobsheet, purchase invoice, sales invoice, receipt voucher — and the applet links each one back to the consultation. It is opened by front-desk advisors and technicians; administrators maintain the predefined checklists and the default branch.
Where it fits
| Direction | Document / applet | How it connects |
|---|---|---|
| Upstream (master data) | Customer, Organisation, Membership Admin | Account tab (entity), branch and consultant (employee), optional member card |
| Upstream (master data) | Vehicle records (bl_fi_mst_entity_vehicle_hdr, API entity-vehicle-hdrs) | A vehicle belongs to a customer entity; the consultation stores the vehicle GUID and registration number |
| Downstream | Sales Quotation (Internal) | Created from the Quotation tab; linked through bl_asv_consultation_gendoc_hdr_link |
| Downstream | Jobsheet (Internal) | Created from the JobSheet tab or the applet’s own Job Sheet menu (INTERNAL_JOBSHEET, both signums 0) |
| Downstream | Sales Invoice (Internal), Purchase Invoice (Internal), Receipt Voucher (Internal) | Created from the Sales Invoice, Purchases and Receipt tabs; the invoice bills the customer, the purchase invoice records supplier parts, the receipt voucher collects payment |
Screens and menus
Route root: applet/tnt/wavelet/erp/car-worshop-applet/ (the typo is in the code).
| Menu item | Route | What it shows |
|---|---|---|

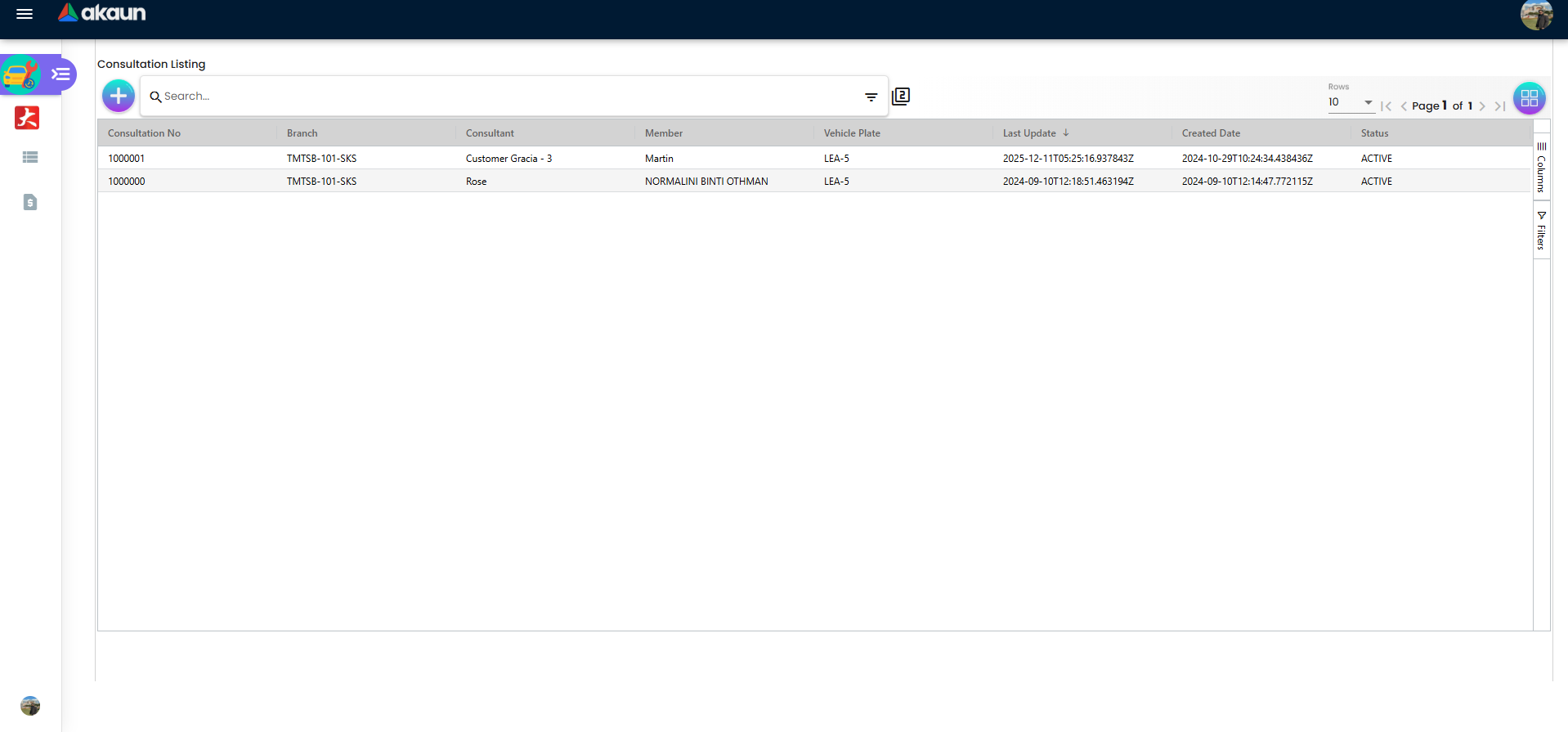

| Consultation | consultation | Consultation listing (Consultation No, Consultation Name, Branch, Consultant, Member, Vehicle Plate, Last Update, Created Date, Status) with create and edit |
| Job Sheet | internal-jobsheet | Listing, create and edit of INTERNAL_JOBSHEET documents — the same document type as the standalone Jobsheet applet |
| Settings | settings/… | Field Settings, Checklist Settings, Default Selection, Webhook, permission listings, Release Notes, Audit Trail |
| Personalization | personalization/… | Per-user Default Selection (branch, location) and sidebar |
The consultation form
Pressing + creates a working record with status TEMP (POST consultation-hdrs/backoffice-ep/temp, AsvConsultationHdrController.java L69–L80); the first Save updates it to ACTIVE (consultation-create-edit.component.ts L342). Tabs, in the default order (re-orderable under Settings → Default Selection): Details, Account, Requests, Checklist, Quotation, JobSheet, Purchases, Sales Invoice, Receipt. A Delete button on Details removes the consultation.

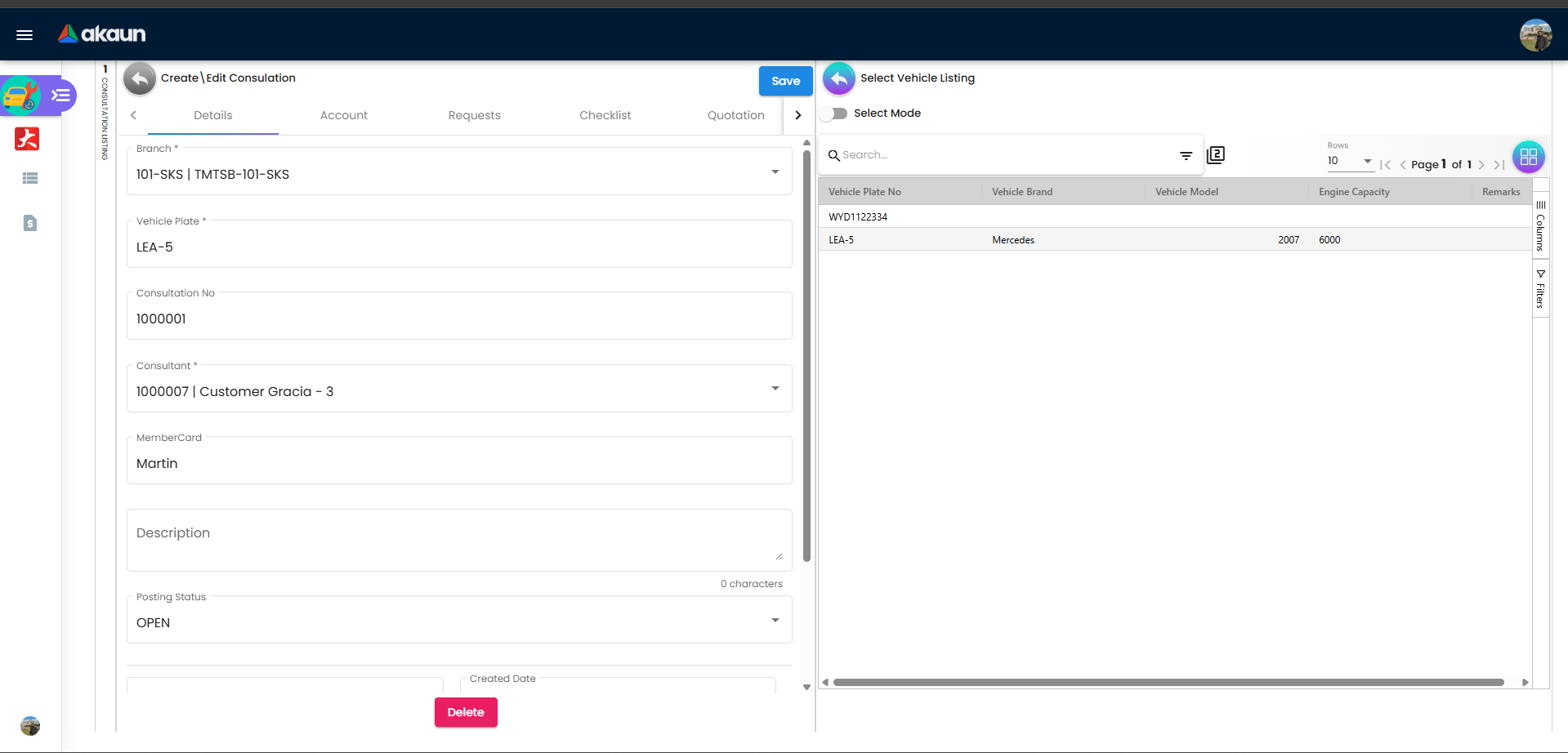

- Details — branch, vehicle plate (opens the Select Vehicle Listing side panel: Plate No, Brand, Model, Engine Capacity, Remarks; a new vehicle can be created there with plate, model and engine capacity required), consultation number, consultant, member card, description, posting status.

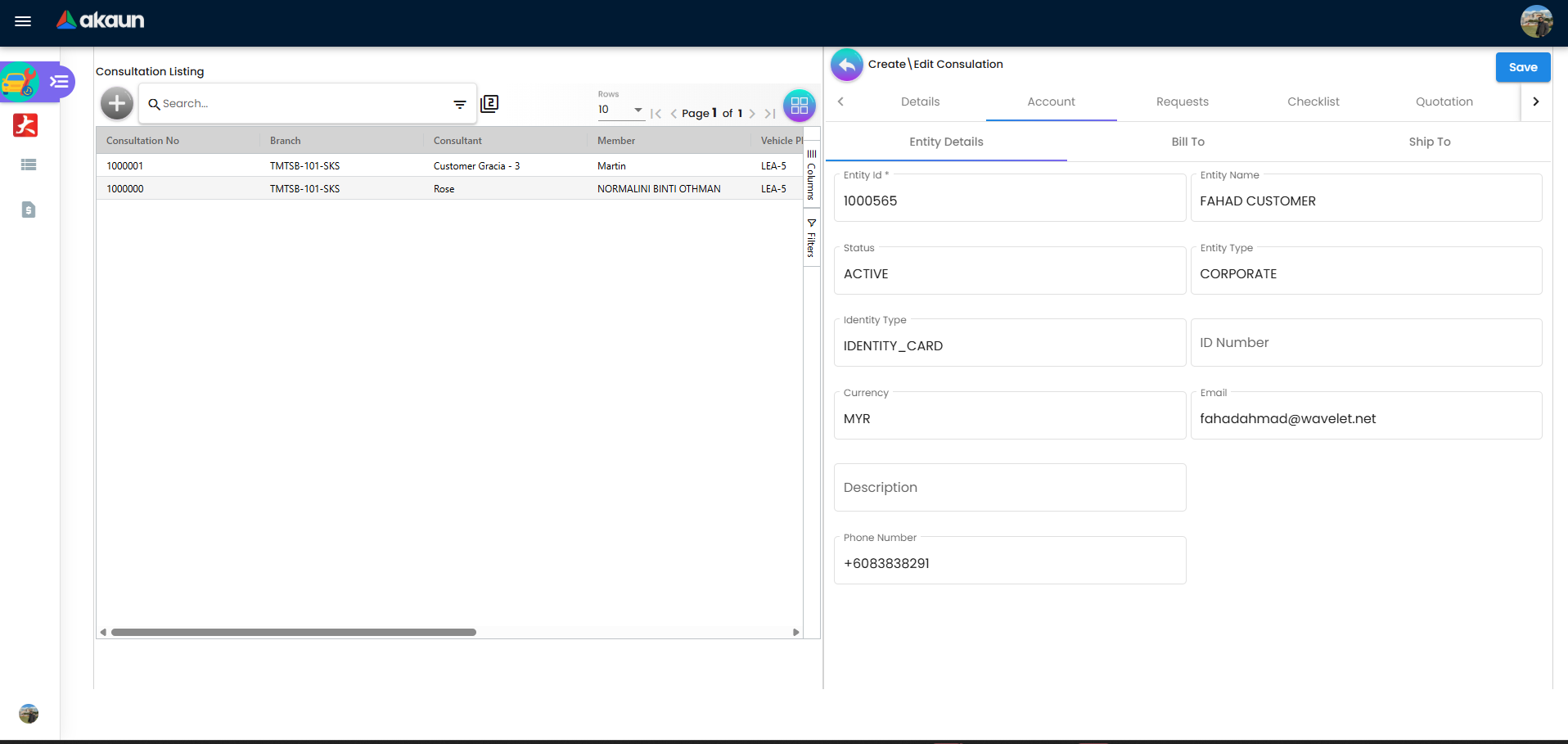

- Account — the shared entity picker (Entity Details, Bill To, Ship To).

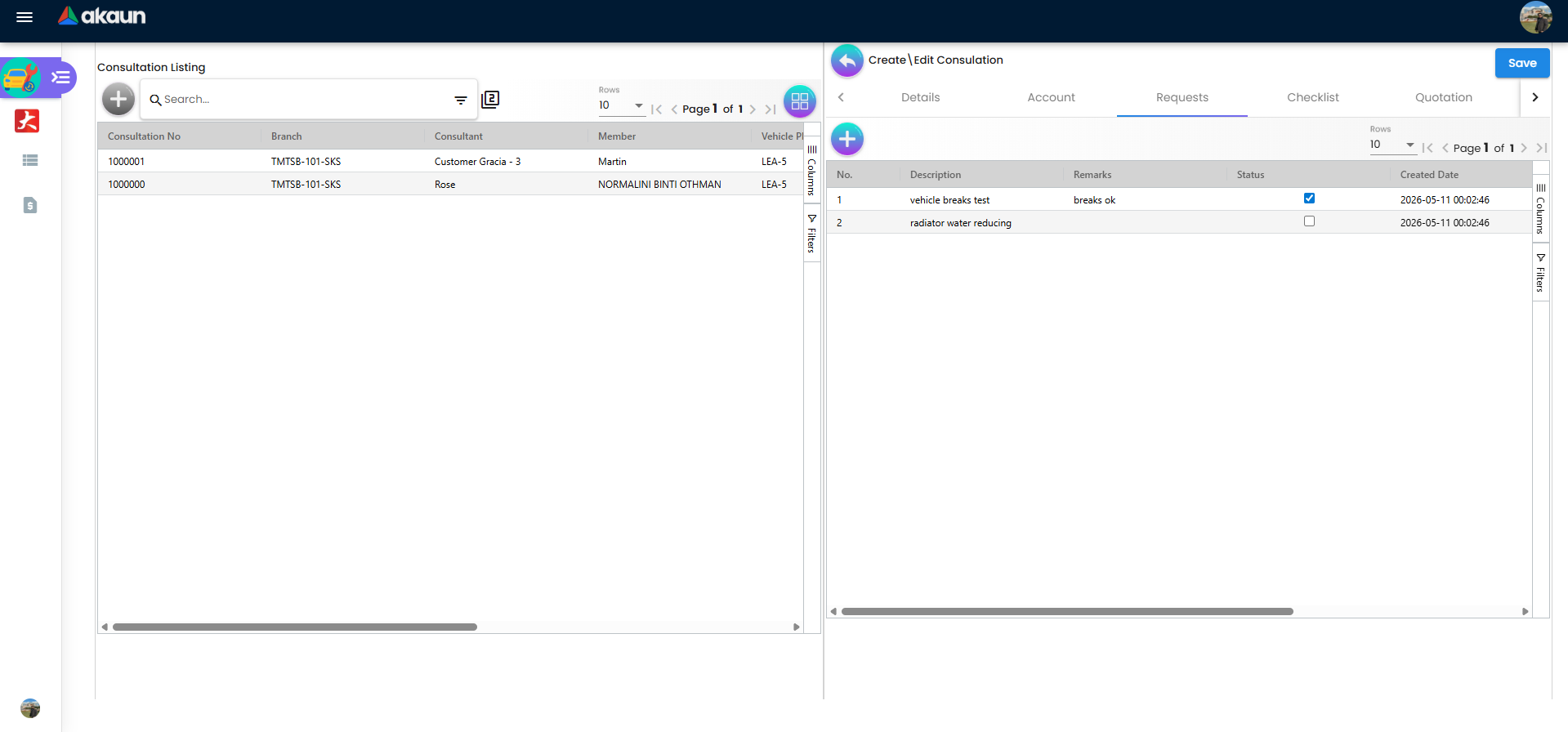

- Requests — a grid of customer-reported issues: No., Description, Remarks, Status (checkbox), Created Date.
- Checklist — three inspection types, Pre-Inspection, Safety and QC (
checklist_type=PRE-INSPECTION,SAFETY,QUALITY-CONTROL), each with sub-tabs Details (date, technician, description, status), Car Condition (photos with a position — FRONT / BACK / LEFT / RIGHT — and description) and Checklist (tick lines from the predefined checklists). - Quotation, JobSheet, Purchases, Sales Invoice, Receipt — an embedded listing of the documents already linked to this consultation, with create/edit forms of the respective document type.
Settings menu
| Settings entry | Route | Purpose |
|---|---|---|
| Field Settings | settings/field-settings | Placeholder only — see Configuration |
| Checklist Settings | settings/consultation-checklist-settings | Predefined checklist headers and their lines |
| Default Selection | settings/default-selection | Default branch and location; consultation tab order |
| Webhook | settings/webhook | Subscribe endpoints to document events |
| Client-Side Permission / Permission Set / User / Team / Role | settings/*-listing | Access control (shared permission module) |
| Release Notes, Audit Trail | settings/release-notes, settings/applet-log | Version history and settings audit |
Configuration
Before you can use it
| Prerequisite | Where | Why the consultation needs it |
|---|---|---|
| Company and branch | Organisation | Branch is required on Details (Validators.required, main-details.component.ts L79); picking a branch in Default Selection copies its MAIN_LOCATION |
| Employees (consultants, technicians) | Organisation | Consultant is required on Details (L83); technician is required on every checklist Details tab (checklist-details.component.ts) |
| Customer entities | Customer | The Account tab is marked [required]="true"; a vehicle belongs to an entity |
| Members (optional) | Membership Admin | Member card on Details |
| Predefined checklists | Settings → Checklist Settings (this applet) | The Checklist sub-tab can only tick lines that exist on a predefined checklist |
Running number CONSULTATION_RUNNING_NO | Tenant running-number setup | Assigned on creation by the backend (AsvConsultationHdrDataConsistencyObject.java L192–L194) |
API permissions API_TNT_DM_ASV_CONSULTATION_HDR_{TEMP_CREATE,CREATE,READ,UPDATE,DELETE}, …_ASV_CONSULTATION_GENDOC_HDR_LINK_*, …_ASV_CHECKLIST_HDR_*, …_ASV_CHECKLIST_LINE_*, …_ASV_CONSULTATION_CHECKLIST_LINE_*, …_CHECKLIST_IMAGE_LINE_* | Settings → Permission Set / User / Team / Role | Each ASV table has its own permission family (TntAsvPermissions.java); the document tabs additionally need the TNT_API_DOC_INTERNAL_* permissions of the document types they create |
| Everything the spawned documents need (default GL codes, tax codes, settlement methods, pricing) | See Sales Invoice (Internal), Jobsheet (Internal), Receipt Voucher (Internal) | The consultation itself posts nothing |
Applet settings
Where the settings live. app.routing.ts mounts three settings surfaces: the applet-local Default Selection (settings/default-selection, with a personal copy at personalization/personal-default-selection), the applet-local Checklist Settings (settings/consultation-checklist-settings) and Field Settings (settings/field-settings). Field Settings is routed to the applet’s own FieldConfigurationComponent (components/settings-container/field-configuration/), not the shared one: it is a 50-line template of unbound <mat-slide-toggle> controls (Lines Settings: Unit Discount, SST/VAT/GST, WHT, Blanket Order; Department Settings…) with an empty component class and a SAVE button wired to nothing. No setting can be saved from that screen. Consequently the only keys that pass all four proofs in this applet are the Default Selection keys below.
Who can change them: any user who can open Settings; there is no finer per-setting authority. Personalization → Default Selection lets a user override DEFAULT_BRANCH / DEFAULT_LOCATION for themselves.
Default Selection (applet-local)
| Setting | Key | What it controls | Default | Effect when changed |
|---|---|---|---|---|
| Default Branch | DEFAULT_BRANCH (+ DEFAULT_COMPANY) | Pre-fills the branch on a new consultation; picking a branch copies its MAIN_LOCATION into Default Location | none (new UntypedFormControl(), default-settings.component.ts L55; reset to null, L106) | New consultations only |
| Default Location | DEFAULT_LOCATION | Default stock location used by the documents created from the consultation | none (L56) | New documents only |
| Details Tab Ordering | CONSULTATION_DETAILS_TAB_ORDER | Drag-and-drop order of the nine consultation tabs; tabs added by an upgrade are appended (L64–L80) | Details, Account, Requests, Checklist, Quotation, JobSheet, Purchases, Sales Invoice, Receipt (L40–L48) | Tab order for all users |
Save writes only these keys (onSave(), L94–L100).

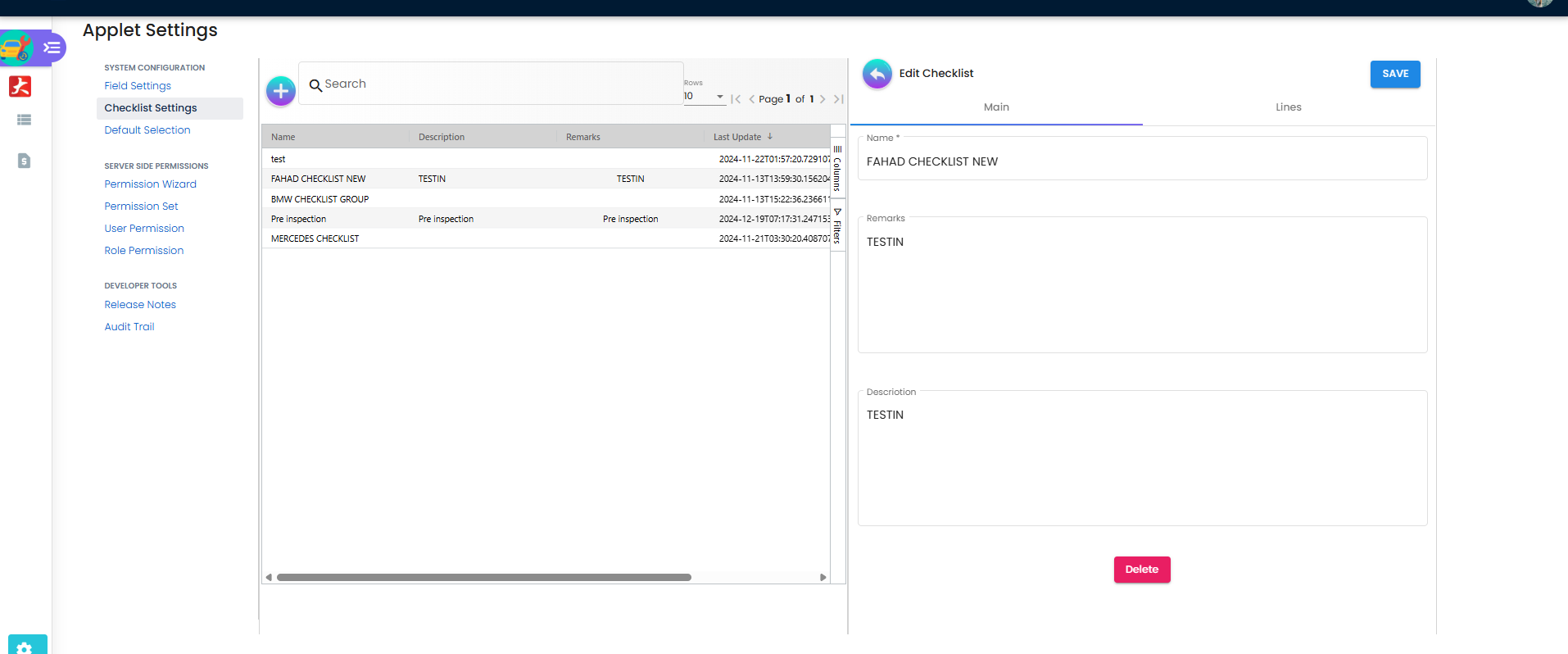

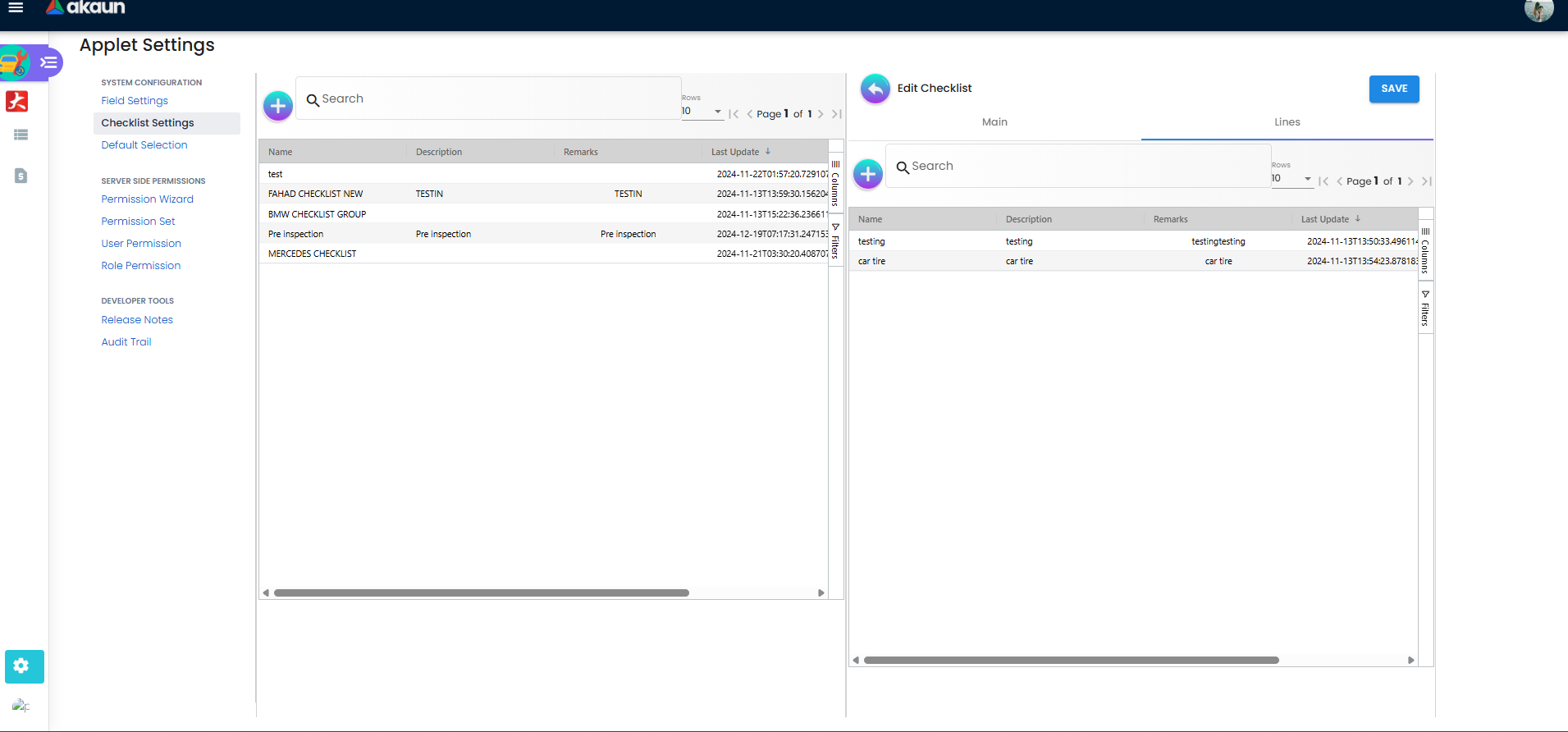

Checklist Settings (applet-local master data)

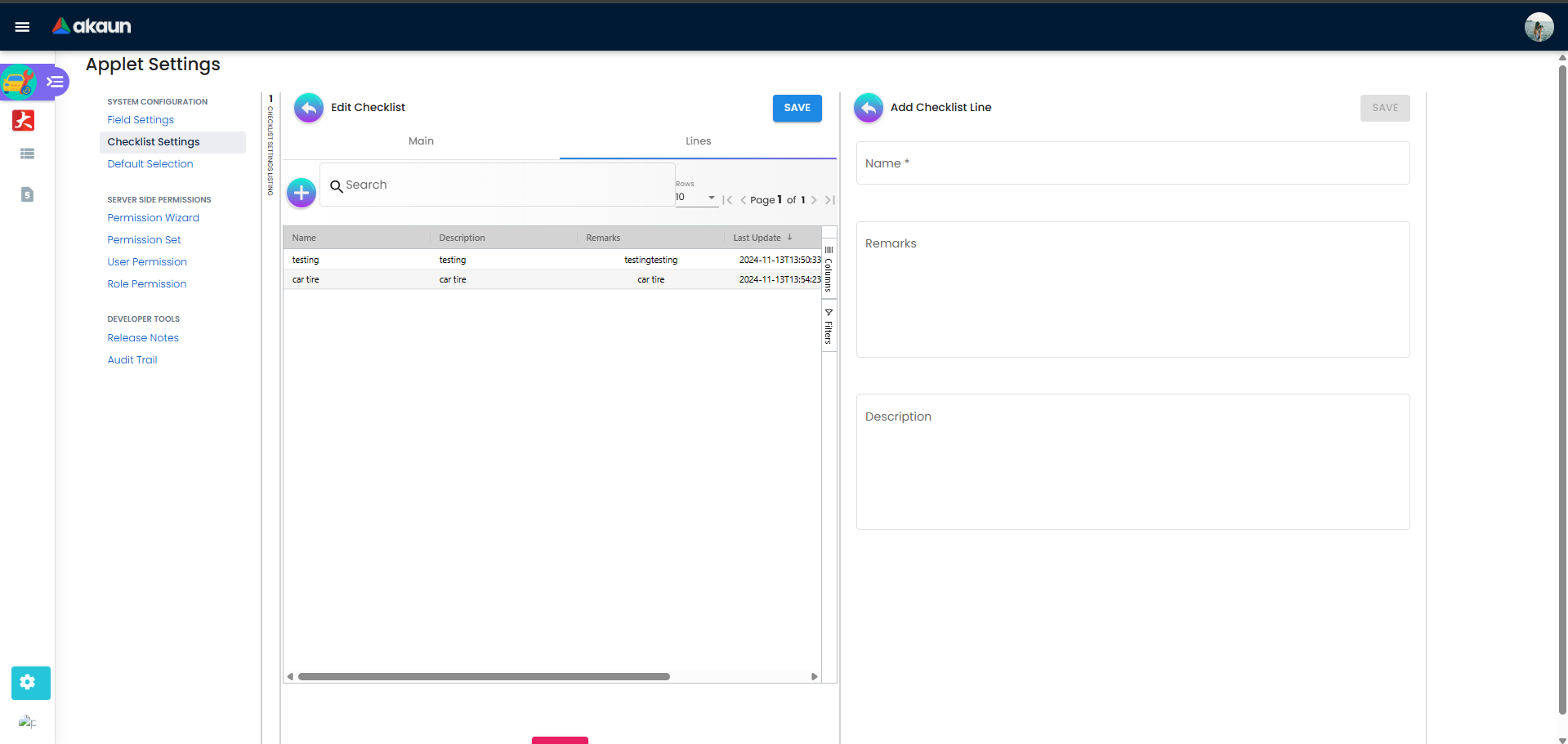

A checklist header (bl_asv_checklist_hdr) has Name (required, max 255 — checklist-create.component.ts L96), Description and Remarks; its lines (bl_asv_checklist_line) each have Name (required, max 255), Description and Remarks. Headers and lines can be created, edited and deleted from the listing; the consultation’s Checklist sub-tab shows every header with its lines as a tree of checkboxes (Select All Checklists at the top).
Rendered on Field Settings but not persisted
The stub screen shows toggles labelled Unit Discount, SST/VAT/GST, WHT, Blanket Order and a Department Settings panel. They are not bound to any form control, are not saved, and are not read by any component — field-configuration.component.ts is a 22-line class at commit 94224f70 with an empty ngOnInit, no form group and no settings subscription. Switching them has no effect.
Read at runtime without a control in this applet
The embedded document forms (jobsheet, quotation, sales and purchase invoice, receipt voucher) are copies of the standalone applets’ components and read the same setting keys from the master settings stored under appletCode = carWorkshopApplet (app.component.ts L67): 240 keys are declared across applet-settings.model.ts and jobsheet-applet-settings.model.ts, and 146 of them are actually read — the HIDE_* / EXPAND_* families, DISABLE_GEN_DOC_LISTING, DEFAULT_POSTING_STATUS, DEFAULT_STATUS, DEFAULT_TRANSACTION_DATE, SORT_ORDER, FUZZY_SEARCH_COLUMNS, ENABLE_SERIAL_NUMBER_VALIDATION_FINAL, ENABLE_DRAFT_LOCK_SERIAL_NUMBER_CHECKING, DISALLOW_SELL_BELOW_MIN_PRICE / …_REPLACEMENT_PRICE / …_MA_COST, ENABLE_MULTIPLE_KO, ENABLE_CREDIT_LIMIT_FILTER, ALLOW_TO_CONTRA_MORE_THAN_DOC_OPEN_AMOUNT, EDIT_CONTRA_TXN_DATE, the credit-card HIDE_* / MANDATORY_* keys, and so on. Because this applet has no working screen for them, they can only be set by an API write to the applet settings (or are simply absent, in which case every toggle behaves as off / shown and the documents behave like their standalone applets with default settings). Their meaning is documented on the standalone pages: Jobsheet (Internal), Sales Quotation (Internal), Sales Invoice (Internal), Purchase Invoice (Internal), Receipt Voucher (Internal).
Document behaviour settings
| Area | How it is configured |
|---|---|
| Consultation status | Record status TEMP → ACTIVE on first save (INACTIVE exists in models/options.ts but is not offered on the form). Posting Status is a plain dropdown — OPEN, CLOSE, DRAFT (main-details.component.ts L52–L56) — saved verbatim to posting_status; the backend attaches no behaviour to it (the DCO validates only guid, name, audit columns, status and revision, AsvConsultationHdrDataConsistencyObject.java). |
| Checklist status | Each checklist Details tab has the same OPEN / CLOSE / DRAFT dropdown (checklist-details.component.ts L58), saved to consultation_status on bl_asv_consultation_checklist_detail_line. |
| Document creation from tabs | Saving a new document on the Quotation / JobSheet / Purchases / Sales Invoice / Receipt tab creates the document through the normal generic-document API and then posts an AsvConsultationGenDocHdrLink (consultation_guid, gen_doc_hdr_guid, server_doc_type) — internal-jobsheet.effects.ts L338–L346 and the equivalent effect in each of the other four controllers. The tab listings filter by consultation_guids + server_doc_type (L42–L46). |
| Vehicle change propagation | Changing the vehicle on a consultation that already has linked documents rewrites vehicle_registration_no and vehicle_hdr_guid on every linked document header (changeGenDocsVehicle$, consultation.effects.ts L114–L175). |
| Posting of the spawned documents | Fixed by each document’s own backend rules (jobsheet: both signums 0 — InternalJobsheetDataConsistencyObject.java L15–L17; invoice, purchase invoice, receipt voucher: see their pages). No applet setting here changes it. |
| Printables, e-Invoice, workflow, intercompany | No controls in this applet. |
| Webhooks | Settings → Webhook; the spawned documents emit their own <SERVER_DOC_TYPE>_CREATED events on creation through the API; the consultation tables have no webhook topic (AsvConsultationHdrService.java calls no WebhookService). |
Feature visibility / permissions
API permissions (server-side) are per ASV table — API_TNT_DM_ASV_CONSULTATION_HDR_{TEMP_CREATE,CREATE,READ,UPDATE,DELETE,OWNER,MEMBER,ADMIN}, the same families for ASV_CONSULTATION_GENDOC_HDR_LINK, ASV_CHECKLIST_HDR, ASV_CHECKLIST_LINE, ASV_CONSULTATION_CHECKLIST_LINE, ASV_CONSULTATION_CHECKLIST_IMAGE_LINE, ASV_CONSULTATION_CHECKLIST_DETAIL_LINE and ASV_CONSULTATION_REQUEST_LINE (TntAsvPermissions.java) — plus TNT_API_DOC_INTERNAL_JOBSHEET_*, …_INTERNAL_SALES_QUOTATION_*, …_INTERNAL_SALES_INVOICE_*, …_INTERNAL_PURCHASE_INVOICE_* and …_INTERNAL_RECEIPT_VOUCHER_* for the document tabs, and entity-vehicle-hdrs create/update for vehicles.
Client-side permissions: the registry (bl_applet_client_side_perm_dfn) seeds no definitions for carWorkshopApplet. The embedded document forms check the same SHOW_* / ALLOW_* codes as their standalone applets; none can be granted here until they are seeded. Settings → Feature Visibility is not routed in this applet.
Fields

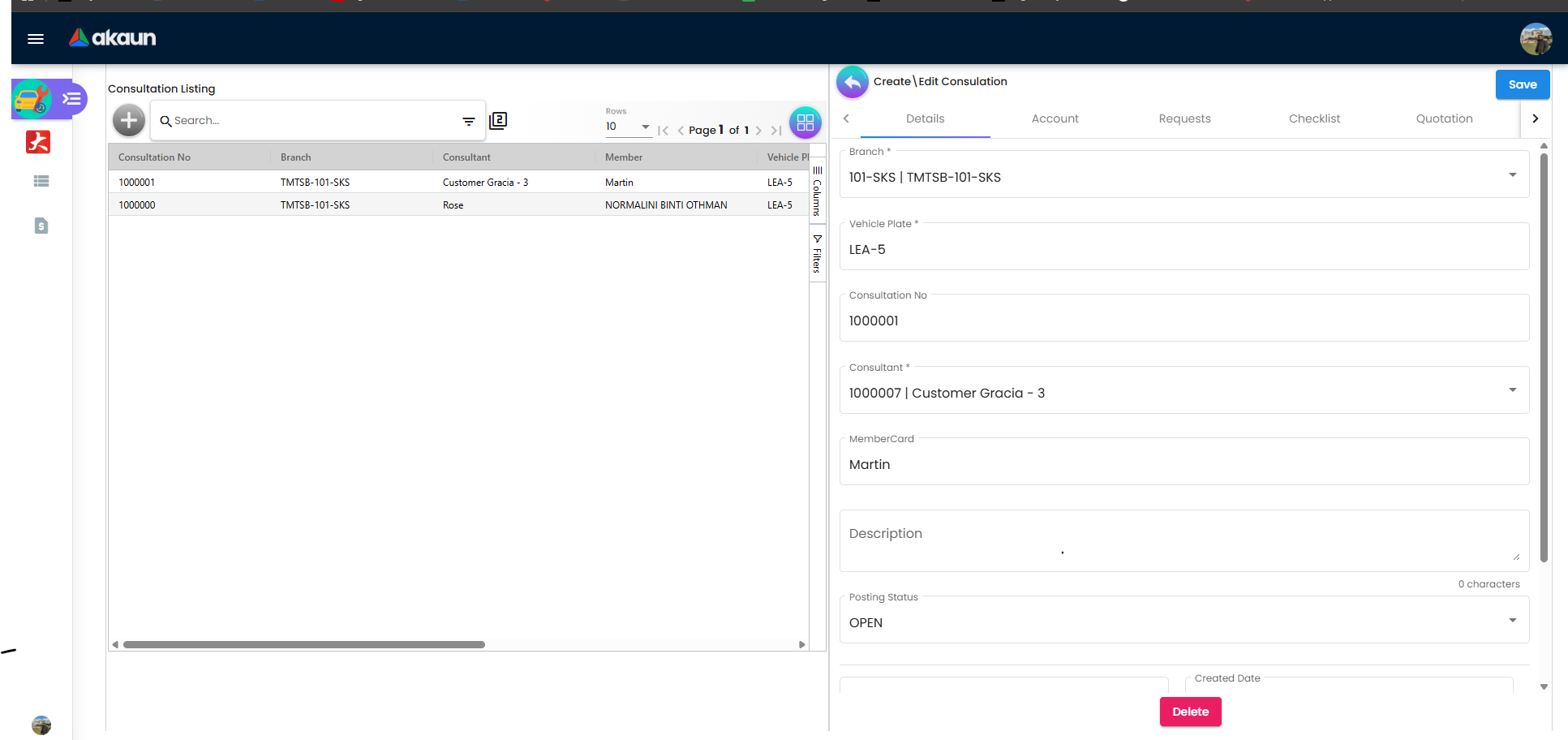

Consultation — Details (bl_asv_consultation_hdr)
| Field | Meaning | Required | Notes |
|---|---|---|---|
| Branch | Workshop branch (guid_branch) | Yes (Validators.required, main-details.component.ts L79) | Pre-filled from Default Selection |
| Vehicle Plate | Registration number (vehicle_registration_no) and the vehicle GUID behind it | Yes (L80) | Chosen from the Select Vehicle side panel; changing it on a saved consultation updates the linked documents |
| Consultation No | consultation_running_no | Generated | Assigned by the backend on creation from CONSULTATION_RUNNING_NO |
| Consultation Name | name | Backend rejects a null name (ASV_CONSULTATION_HDR_OBJECT_NAME_IS_NULL_OR_EMPTY) | Optional in the form; the applet sends the field as typed (an empty string passes the null check — consultation-create-edit.component.ts L335) |
| Consultant | Employee handling intake (consultant_guid) | Yes (L83) | |
| MemberCard | Linked member (member_guid) | No | Select Member panel |
| Description | Free text | No | |
| Posting Status | OPEN / CLOSE / DRAFT | No | Label only; see Document behaviour |
| Created / Modified by and dates | Audit | Read-only |

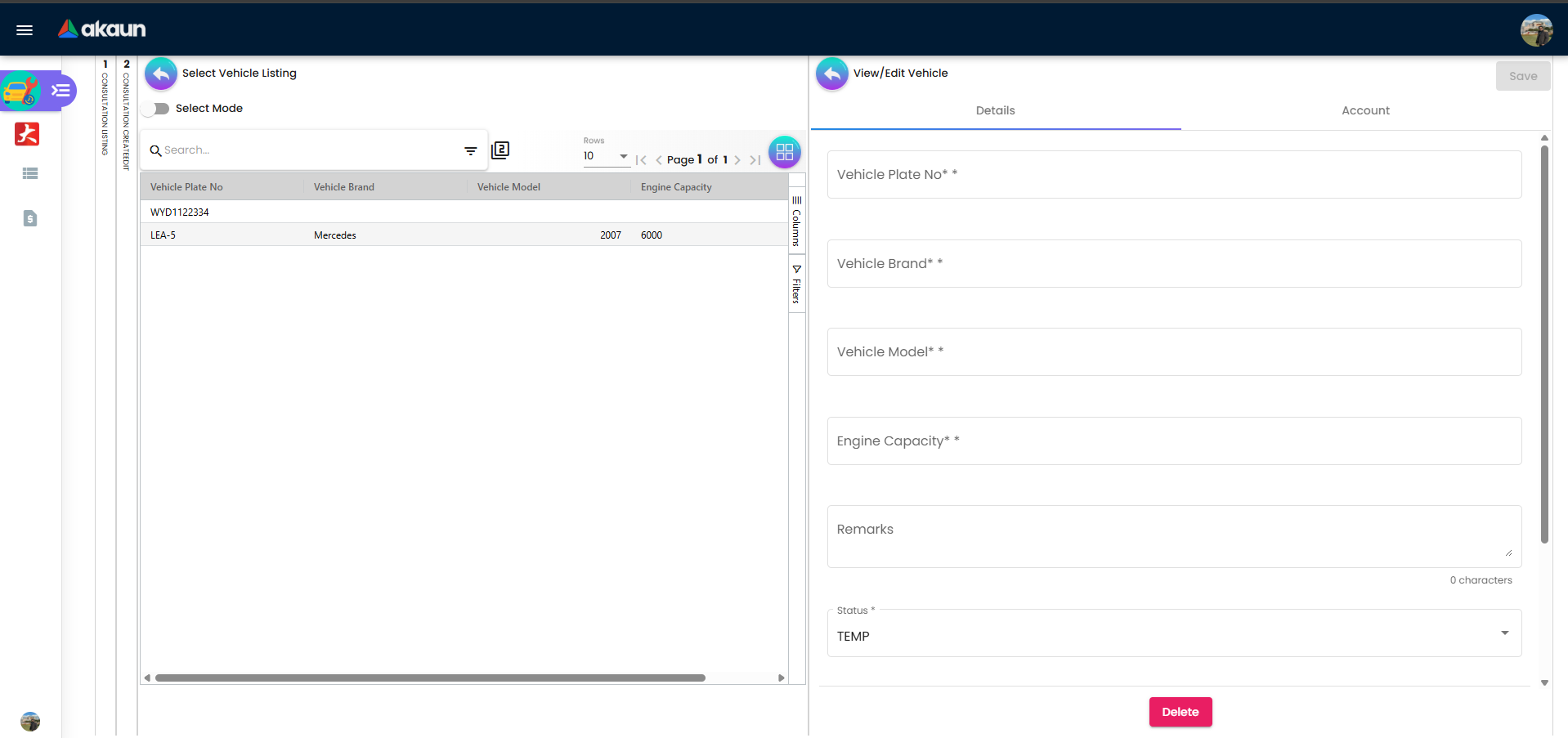

Vehicle (bl_fi_mst_entity_vehicle_hdr, created from the Select Vehicle panel)
| Field | Meaning | Required | Notes |
|---|---|---|---|
| Vehicle Plate No | regnum | Yes (vehiclePlateNo, Validators.required) | |
| Vehicle Model | model_name | Yes | Brand, manufacturer, variant and engine exist as columns and listing columns |
| Engine Capacity | capacity | Yes | |
| Remarks, Status | Free text, record status | No | The table also carries year, chassis and engine numbers, colour, mileage, last/next repair, road-tax, insurance, permit and inspection dates for other applets; this form does not expose them |

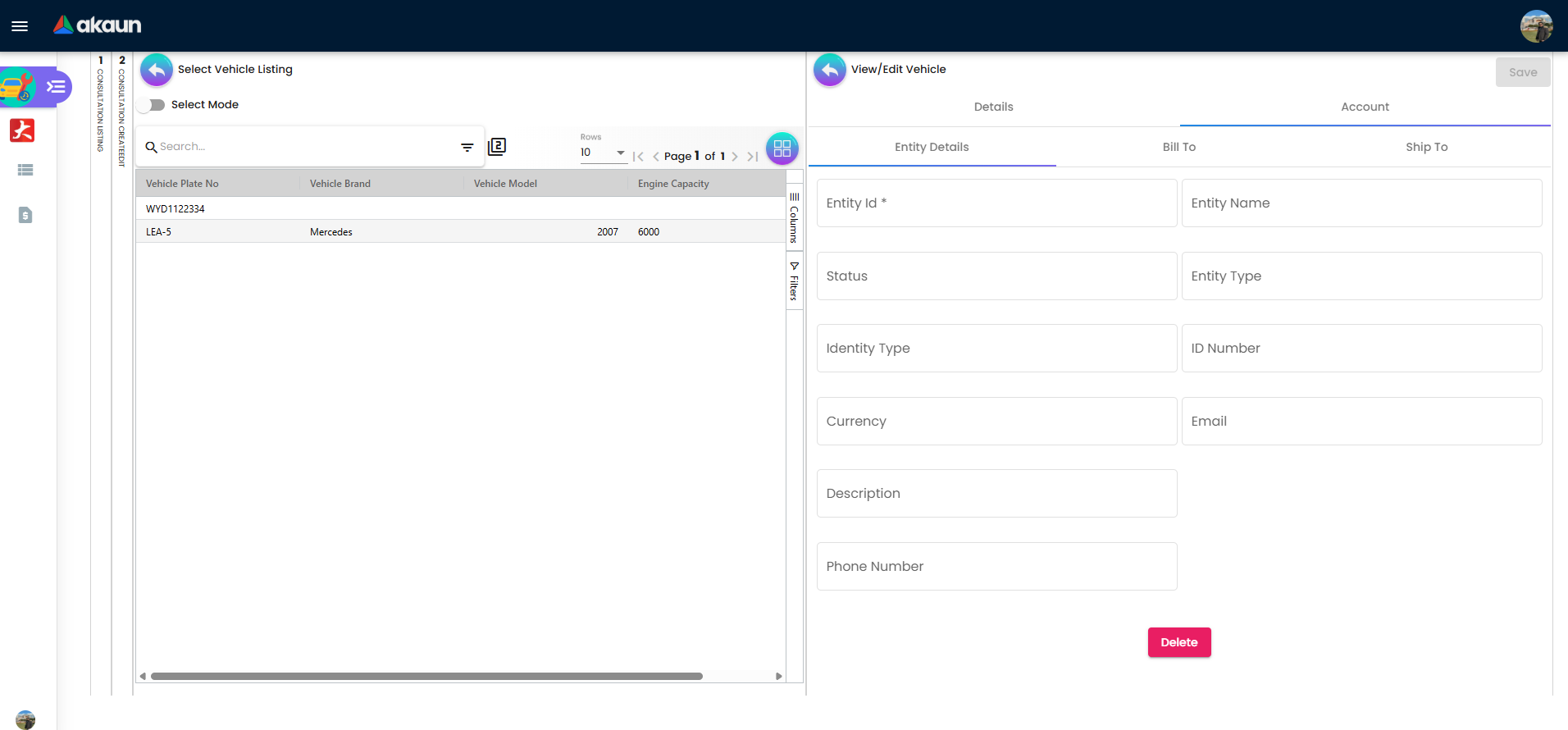

| Customer (entity), Bill To / Ship To | The vehicle’s owner | Entity required on the vehicle’s Account tab |
Requests (bl_asv_consultation_request_line): Description, Remarks, Status (checkbox → request_status); rows are added with + and removed with the row action.
Checklist (per type PRE-INSPECTION, SAFETY, QUALITY-CONTROL)
| Sub-tab | Table | Fields | Required |
|---|---|---|---|

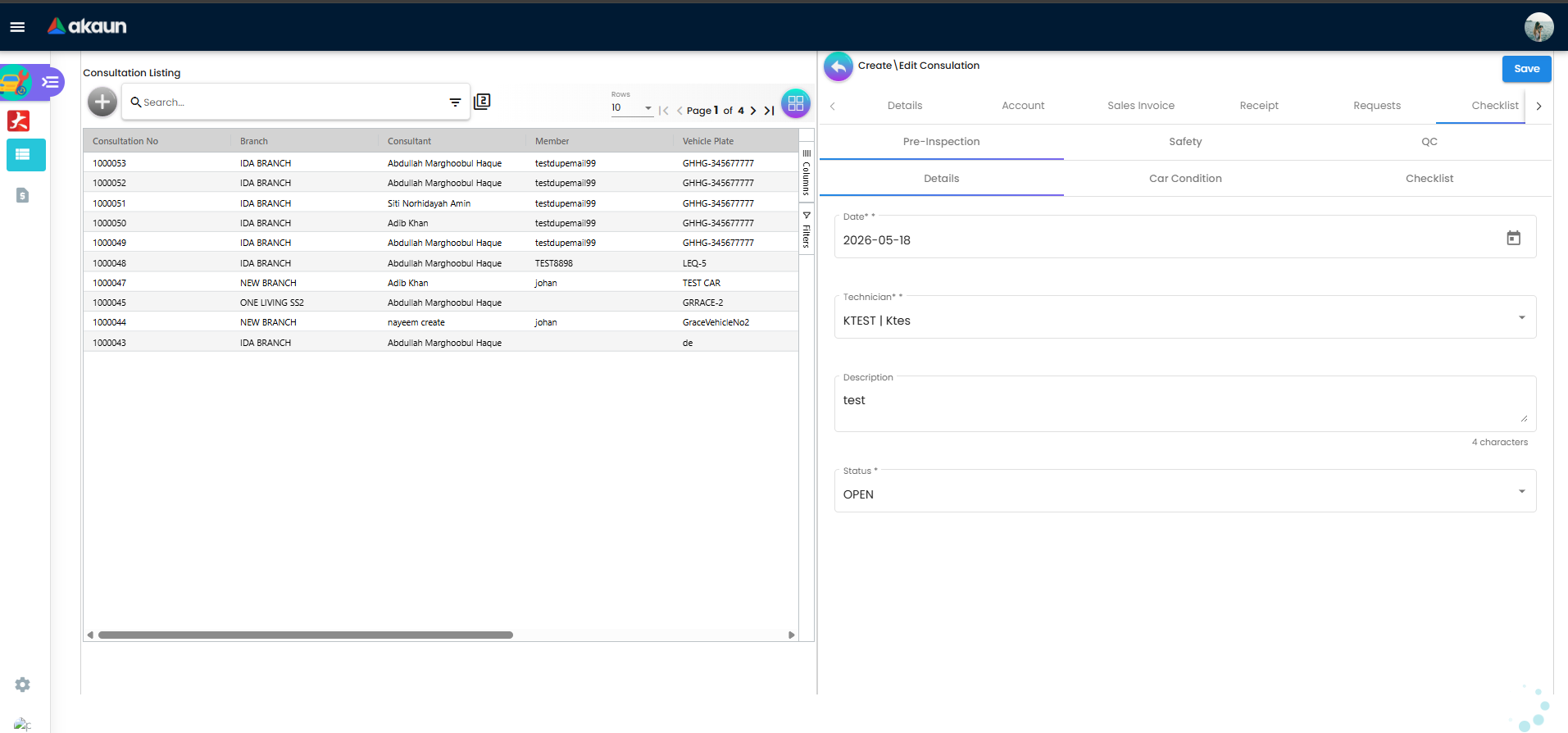

| Details | bl_asv_consultation_checklist_detail_line | Date (txn_date), Technician (technician_guid), Description, Status (OPEN / CLOSE / DRAFT → consultation_status) | Date, Technician, Status (checklist-details.component.ts — Validators.required) |

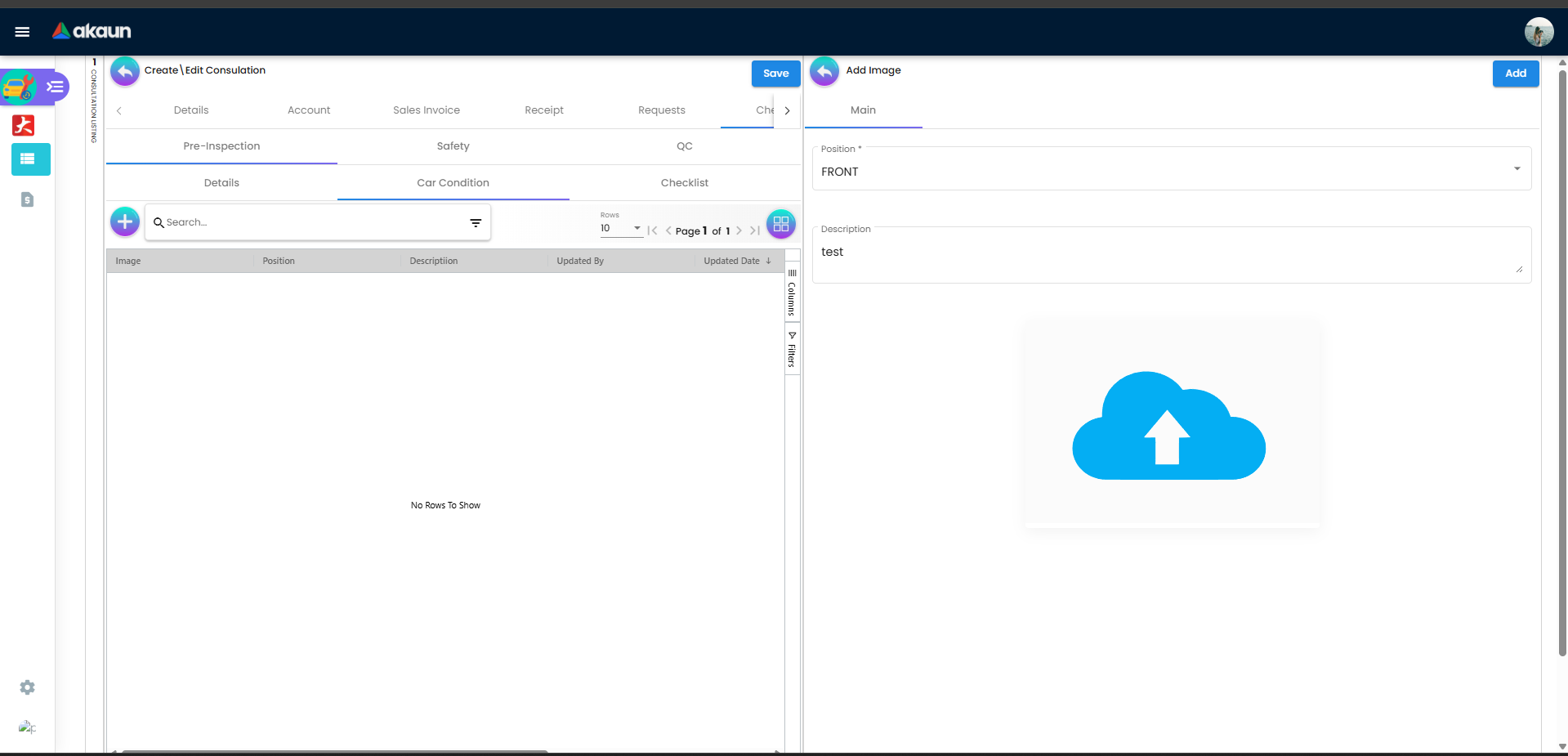

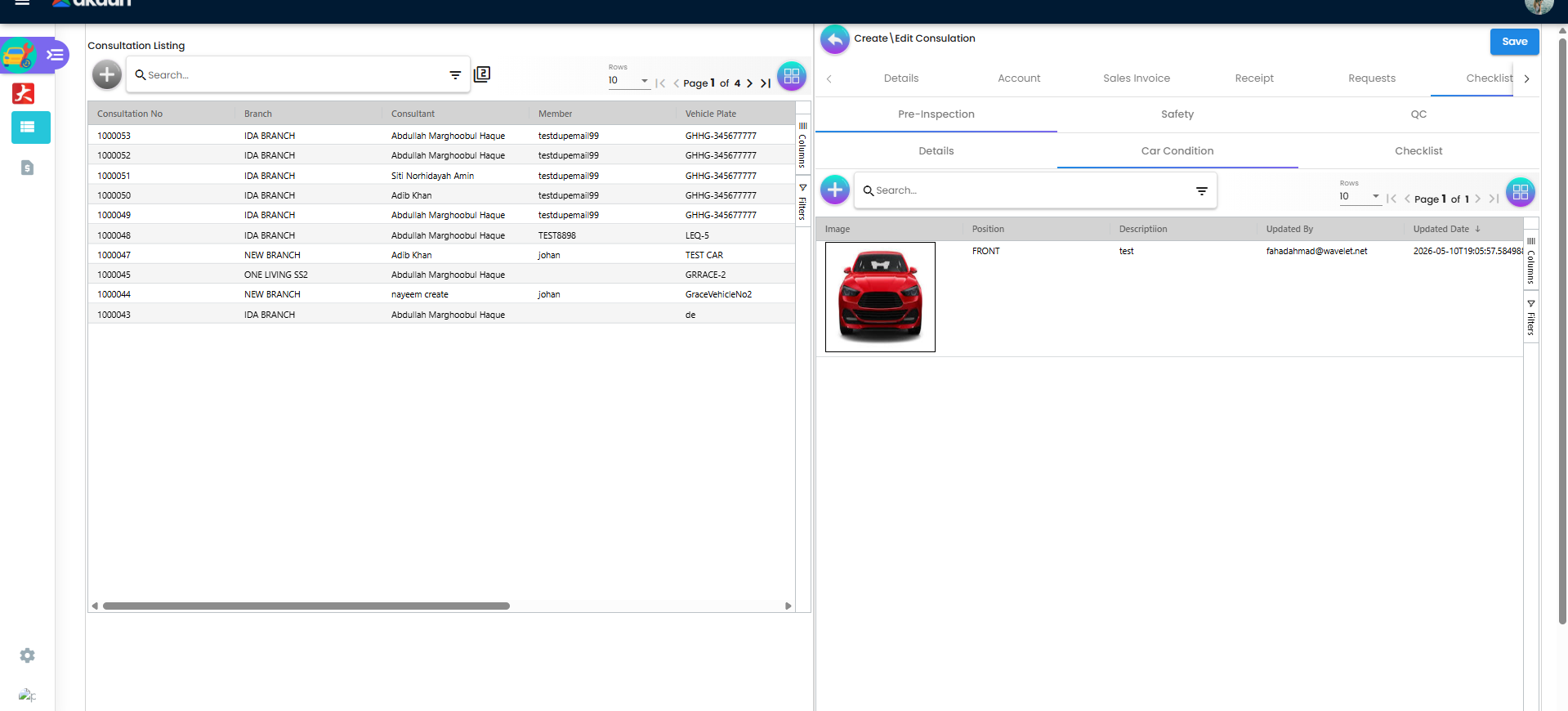

| Car Condition | bl_asv_consultation_checklist_image_line | Image (uploaded file), Position (FRONT / BACK / LEFT / RIGHT), Description | Position (image-create.component.ts) |

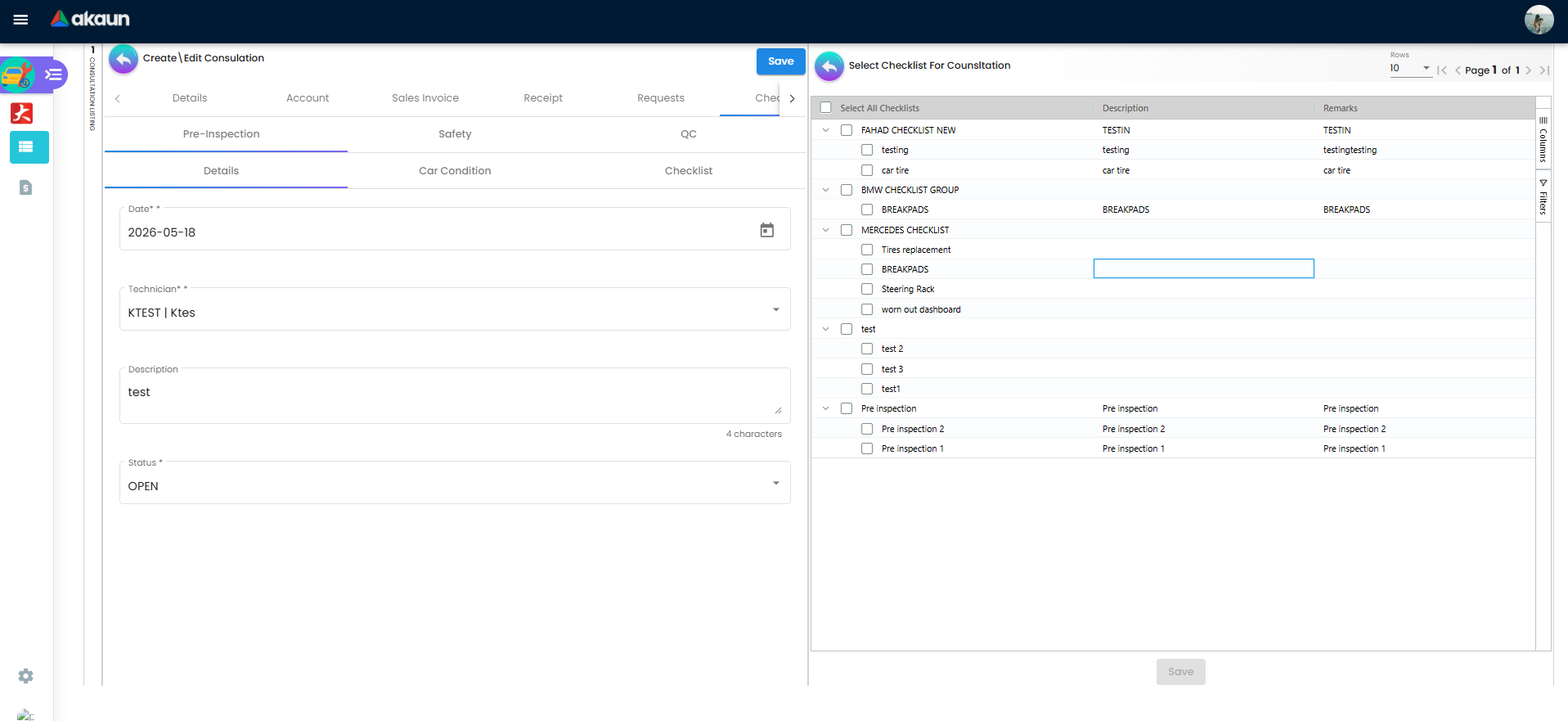

| Checklist | bl_asv_consultation_checklist_line | Ticked lines from the predefined checklists (name, remarks, checklist_status) | At least one line when saving a selection (checklistLines, Validators.required) |
Job Sheet (own menu and the JobSheet tab) — INTERNAL_JOBSHEET with tabs Search, Main Details, Account, Lines, Payment, Department Hdr on create, plus Delivery Details, Contra, Doc Link, Attachments, Export and Convert on edit. Field-level reference: Jobsheet (Internal).
Lifecycle and effects
| Record | Statuses | Effects |
|---|---|---|
| Consultation | TEMP (created by +) → ACTIVE (first Save); deleted by the Delete button (DELETE consultation-hdrs/backoffice-ep/{guid} → AsvConsultationHdrUow.delete, a row delete, AsvConsultationHdrUow.java L69–L81) | Creation assigns consultation_running_no (AsvConsultationHdrDataConsistencyObject.java L192–L194). No journal, stock, ARAP or e-Invoice effect at any status. Posting Status OPEN / CLOSE / DRAFT is informational |
| Checklist detail / image / line rows | Saved with the consultation; each type has its own OPEN / CLOSE / DRAFT status | Stored only; nothing downstream reads them |
| Document links | Created when a document is saved from a tab; one row per document in bl_asv_consultation_gendoc_hdr_link | Deleting the consultation removes the consultation row; the linked documents remain as ordinary documents in their own applets |
| Jobsheet (from this applet) | DRAFT → FINAL → VOID, as in the Jobsheet applet | Both signums 0 (InternalJobsheetDataConsistencyObject.java L15–L17): FINAL assigns numbers only; see the jobsheet page for its posting proof |
Posting proof block (for the applet’s own record)
| Item | Value | Source |
|---|---|---|
| Server document type | none — bl_asv_consultation_hdr is not a generic document; the embedded Job Sheet is INTERNAL_JOBSHEET | AsvConsultationHdrDataConsistencyObject.java; models/applet-constants.ts (docType = "INTERNAL_JOBSHEET", amount_signum = 0, quantity_signum = 0) |
| Amount / quantity signum | not applicable (jobsheet: 0 / 0) | InternalJobsheetDataConsistencyObject.java L15–L17 |
| Dr/Cr equation, GL precedence, stock processor | none — nothing is posted by the consultation or by a jobsheet | JournalPostingService.java L96 skips zero-signum lines |
| What VOID reverses | no VOID on a consultation; a voided jobsheet reverses nothing | — |
| Money and stock | move only through the Sales Invoice, Purchase Invoice and Receipt Voucher created from the tabs | their pages |
Related applets
- Jobsheet (Internal) — the work order; this applet embeds a full copy of it under its Job Sheet menu and JobSheet tab.
- Sales Quotation (Internal) — quote raised from the Quotation tab.
- Sales Invoice (Internal) — customer billing from the Sales Invoice tab.
- Purchase Invoice (Internal) — supplier parts from the Purchases tab.
- Receipt Voucher (Internal) — collection from the Receipt tab.
- Customer, Organisation, Membership Admin — entity, branch/employee and member master data.
Troubleshooting
| Symptom | Cause | Fix |
|---|---|---|
| Toggles on Settings → Field Settings do nothing | The screen is a placeholder with no bound controls and no save (field-configuration.component.html) | Expected; the embedded documents use default behaviour unless settings are written through the API |
| A checklist line or column you expected is hidden on the Lines grid of a jobsheet or invoice created here | Those documents read the HIDE_* keys stored under carWorkshopApplet, which were set through the API or copied from another tenant | Inspect the applet’s master settings through the API; the standalone applet’s settings do not apply here |
Creating a consultation returned CLIENT_QUERY_WRONG_FORMAT / two consultations appeared | Race condition in the create flow (applet issue #5, fixed) | Upgrade the applet |
| Save disabled on Details | Branch, Vehicle Plate or Consultant empty — all three are required | Fill them; pick the vehicle from the side panel rather than typing a plate |
| Save disabled on a checklist Details tab | Date, Technician and Status are required | Fill them |
| Cannot save the Checklist sub-tab selection | No line ticked (checklistLines is required) | Tick at least one predefined line, or add lines under Settings → Checklist Settings first |
| Vehicle side panel shows no vehicles | Vehicles belong to customer entities; none exist yet | Create one from the panel (plate, model, engine capacity required) and link it to the customer |
| Linked documents still show the old plate after the vehicle was changed | Older build, or the propagation effect failed for one document (changeGenDocsVehicleFailure) | Reopen the document and correct the plate, or upgrade |
| Consultation deleted but its jobsheet / invoice still exist | Expected: the delete removes the consultation row only | Void or discard the documents in their own applets |
| “Do You Wish To Save Your Changes?” when leaving | Unsaved edits on the consultation (return pop-up) | Save or discard |
