Jobsheet (Internal) Applet

🚀 TL;DR: What Is This Applet For?

This applet is a worklog with billing context. You use it to record what service work was done, for which customer, using what parts or labour — so that the finance team can turn it into an invoice without asking follow-up questions.

Think of it like a restaurant kitchen order: the kitchen writes down what was prepared (Jobsheet), and the cashier uses that to print the customer’s bill (Sales Invoice). The customer never sees the kitchen order — it’s internal.

Do the work → record it in [Jobsheet] → finance converts to [Sales Invoice] → customer pays

It is not a commission tool, not a stock system, and not a customer-facing document. It sits between “work was done” and “customer gets billed.”

Purpose and Overview

The Internal Jobsheet Applet is a versatile tool designed to capture and manage detailed service records, task completions, and associated costs. It bridges the gap between field work or internal tasks and the financial systems of the organization by integrating account management, line item tracking, and payment processing.

The “Workshop Job Card” Analogy

If you have ever taken a car to a mechanic, you already understand what a Jobsheet is:

1. This Applet (The Workshop Job Card — Operational)

• The Analogy: You are the Workshop Manager. When a customer brings in a car, you open a Job Card. You write down the customer’s name, what they complained about, what parts were replaced, how many hours the technician worked, and what the final cost is.
• The Reality: This is where you record the work. You capture the service entity (who), the line items (what was done and what parts were used), the technician assigned, and the financial settlement (payment or contra).
• Accounting Importance: To ensure every service is billable and traceable. Without a Jobsheet, there is no formal record of what was done. You cannot invoice a customer for work that was never documented, and you cannot track the cost of parts consumed during a job.

2. The Sales Invoice Applet (The Cashier Counter — Billing)

• The Analogy: Once the car is fixed, the Cashier takes the Job Card and converts it into a Receipt for the customer to pay.
• The Reality: The Sales Invoice Applet is where the Jobsheet’s line items are pulled into a formal billing document. The Jobsheet is the source of truth for what was done; the Invoice is the financial claim sent to the customer.
• Accounting Importance: This is where Revenue is Recognized. The Jobsheet records the cost; the Invoice records the income. Both must exist for the accounting books to balance.

Key Features Overview

Who Benefits from This Applet?

Service Technicians & Field Workers:

• Clear documentation of work performed
• Real-time capturing of materials and hours used
• Easy access to customer billing and shipping information
• Mobile-friendly interface for on-site updates

Operations & Department Managers:

• Full visibility into all active and completed job sheets
• Ability to track resource allocation and job efficiency
• Department-level reporting for better cost control
• Seamless review and approval of service records

Finance & Billing Teams:

• Direct link between service delivery and financial transactions
• Reduction in data entry errors from paper-to-digital migration
• Integrated support for payments, contras, and adjustments
• Accurate departmental cost center allocation

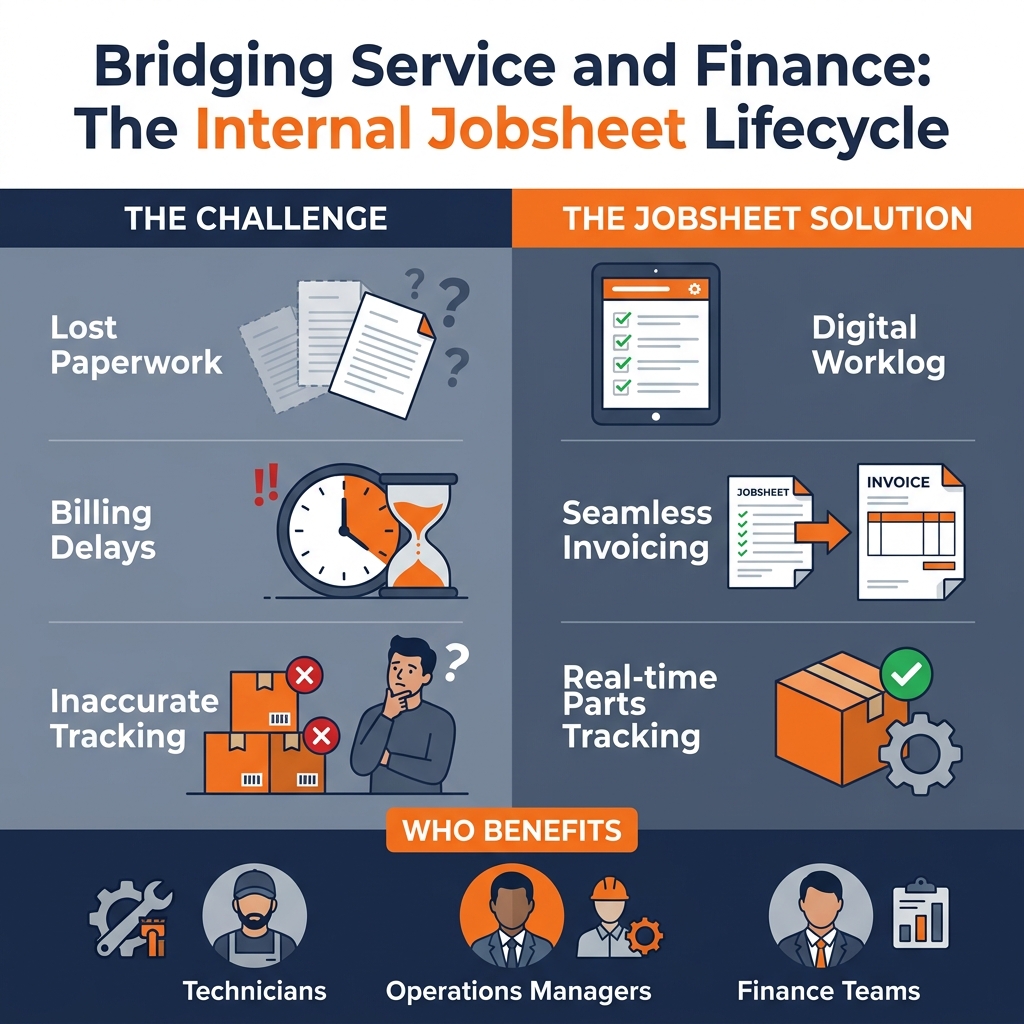

What Problems Does This Solve?

The Disconnected Service Workflow Problem:

Traditional service tracking often relies on loose papers, manual logs, or separate systems that don’t talk to accounting. Common issues include:

• Lost or illegible service records
• Delays in billing customers for services rendered
• Difficulty in tracking internal job costs by department
• Lack of centralized history for recurring service tasks
• Manual reconciliation of payments against job records

The Internal Jobsheet Solution:

• Centralized Digital Repository - All job sheets stored in one searchable location
• Integrated Account Management - Directly link jobs to CRM contacts and billing profiles
• Granular Line Item Tracking - Detail every service and part used with precision
• Financial Synchronization - Record payments and contras within the same workflow
• Departmental Accountability - Tag every job to a specific department for transparent reporting

Key Features Overview

Key Concepts

Understanding the Jobsheet Framework

The system organizes service delivery into three primary pillars to ensure data integrity and operational clarity:

Jobsheet Lifecycle Structure

The workflow follows a logical progression from initiation to completion:

Organization
│
├── Department ──→ WHERE the cost/credit is attributed
│   │
│   └── Account/Entity ──→ WHO is the recipient of the service
│       │
│       └── Jobsheet Header ──→ Main details, dates, and references
│           │
│           ├── Line Items ──→ SPECIFIC work performed or items used
│           │
│           └── Payments/Contras ──→ FINANCIAL impact and settlements

Detailed Menu & Tab Explanation

Below is the complete functional breakdown of every tab inside the Jobsheet form. For each tab, we explain what it does, what data it holds, and why it matters from an accounting perspective.

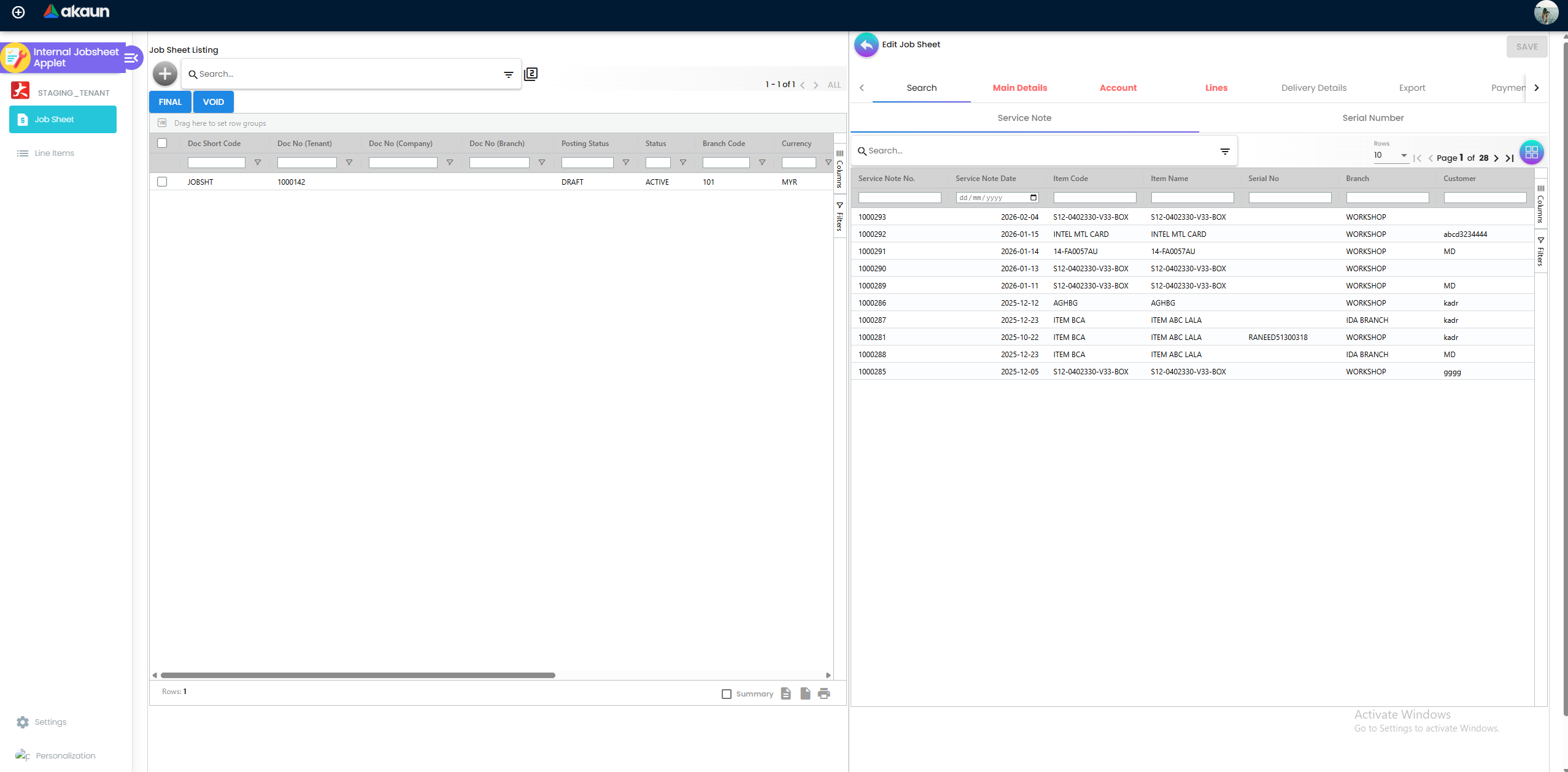

1. Search Tab

• What it is: A quick-lookup panel that lets you find an existing Service Note or locate a customer by Serial Number before creating a new Jobsheet.
• The Analogy: The Reception Desk at a workshop. Before opening a new Job Card, the receptionist checks if this customer or device has been in before.
• Data Source: Searches across existing Service Notes and customer/serial number records in the system.
• Accounting Importance: Prevents Duplicate Records. If a customer calls back about the same issue, you can pull the original Jobsheet instead of creating a new one, keeping the billing history clean and avoiding double-charging.

This tab can be hidden via Application Settings if your workflow does not require it.

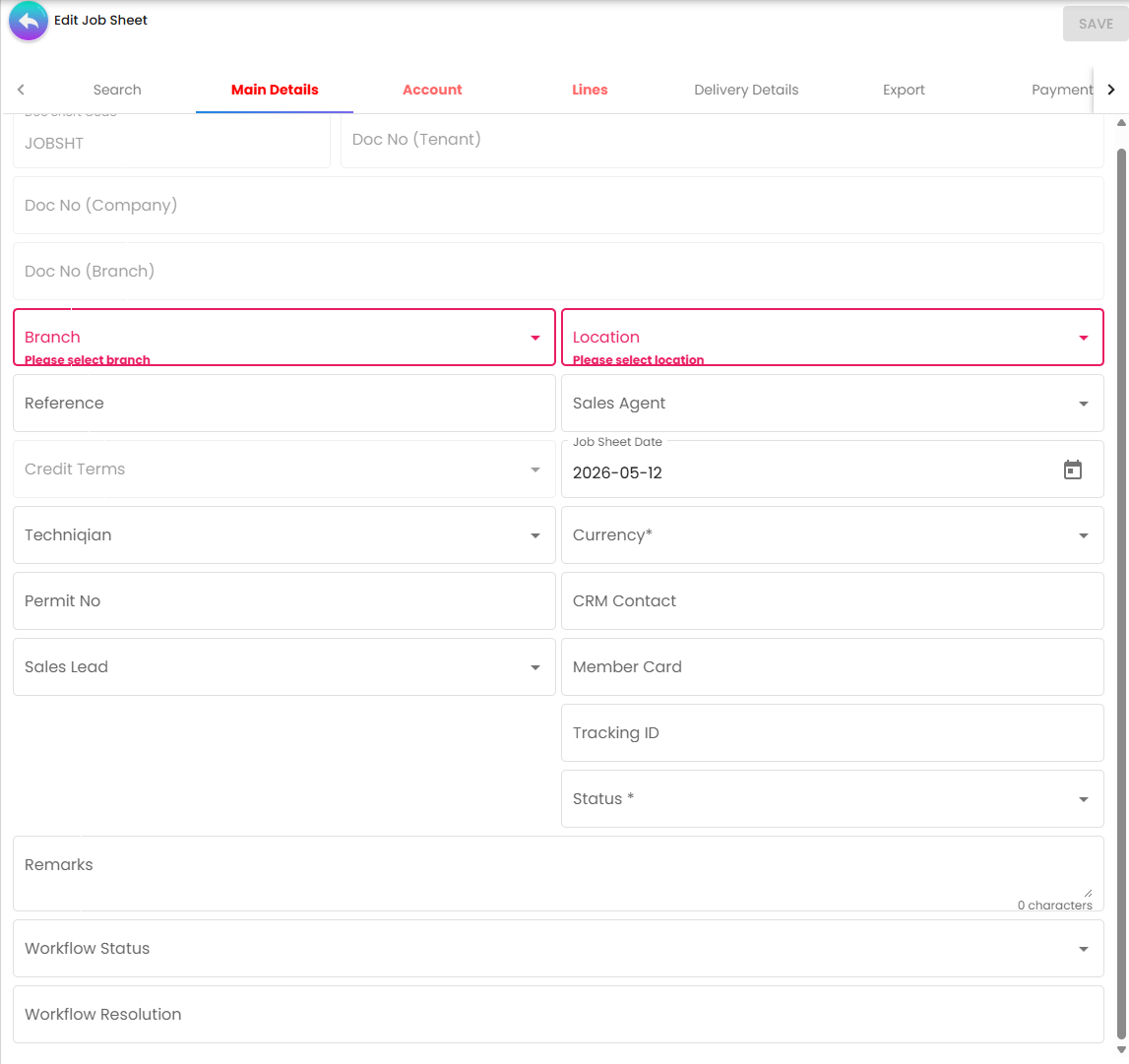

2. Main Details Tab

• What it is: The header of the Jobsheet. This is where you fill in the core identifying information for the job.
• The Analogy: The top section of a Job Card — the customer’s name, the date the car came in, the mechanic assigned, and the job reference number.
• Key Fields:

• Accounting Importance: The Branch and Date fields are critical for Period-End Reporting. A job dated in the wrong month will appear in the wrong financial period, causing mismatches in monthly revenue and cost reports.

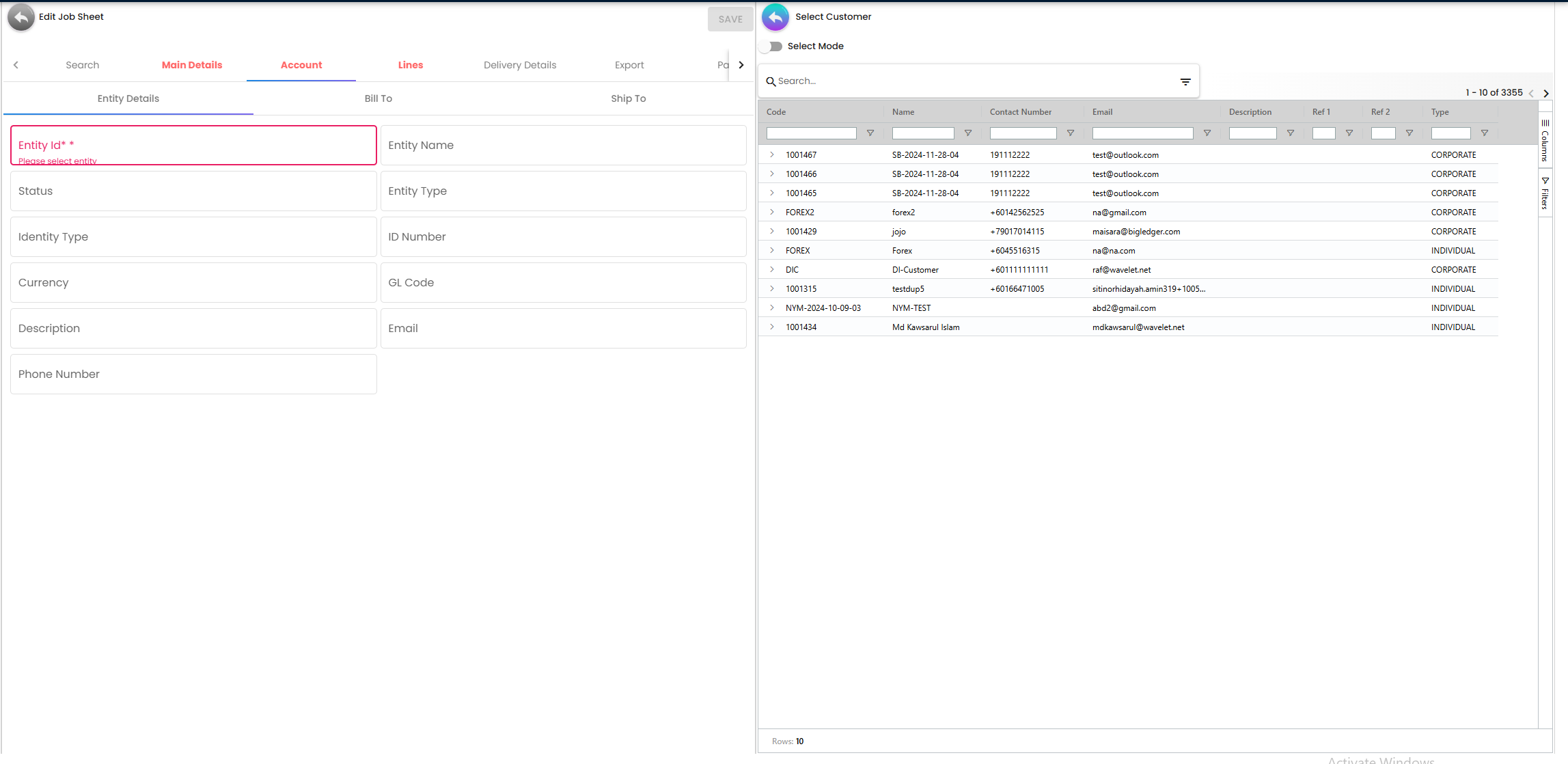

3. Account Tab

The Account tab has three sub-tabs that together define who this job is for and where documents should be sent.

3a. Entity Details

• What it is: The primary customer or entity linked to this Jobsheet.
• The Analogy: The Customer Profile Card — who owns the car being serviced.
• Data Source: Pulls from the Customer master, Employee records, or CRM Contacts.
• Accounting Importance: This is the Debtor Record. When the Jobsheet is converted to an Invoice, the system uses this entity to post the Accounts Receivable entry. A wrong entity means the invoice goes to the wrong debtor account.

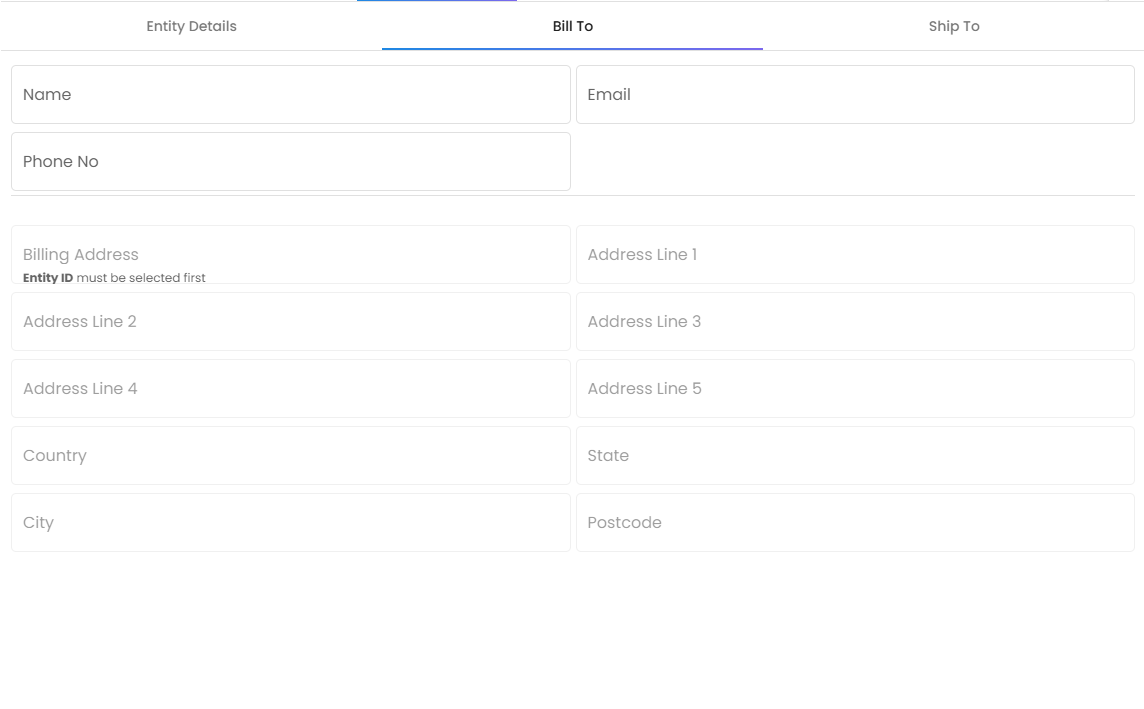

3b. Bill To

• What it is: The billing address — where the invoice should be sent.
• The Analogy: The Registered Office Address of the company paying the bill (which may differ from where the work was done).
• Accounting Importance: Critical for Tax Compliance. The billing address determines which tax jurisdiction applies to the transaction. An incorrect address can result in the wrong tax rate being applied.

3c. Ship To

• What it is: The delivery or service address — where the work was physically performed or goods delivered.
• The Analogy: The Site Address where the technician actually went to do the work.
• Accounting Importance: Used for Logistics Costing and Delivery Reconciliation. If your company charges travel or delivery fees, the Ship To address is the basis for calculating those costs.

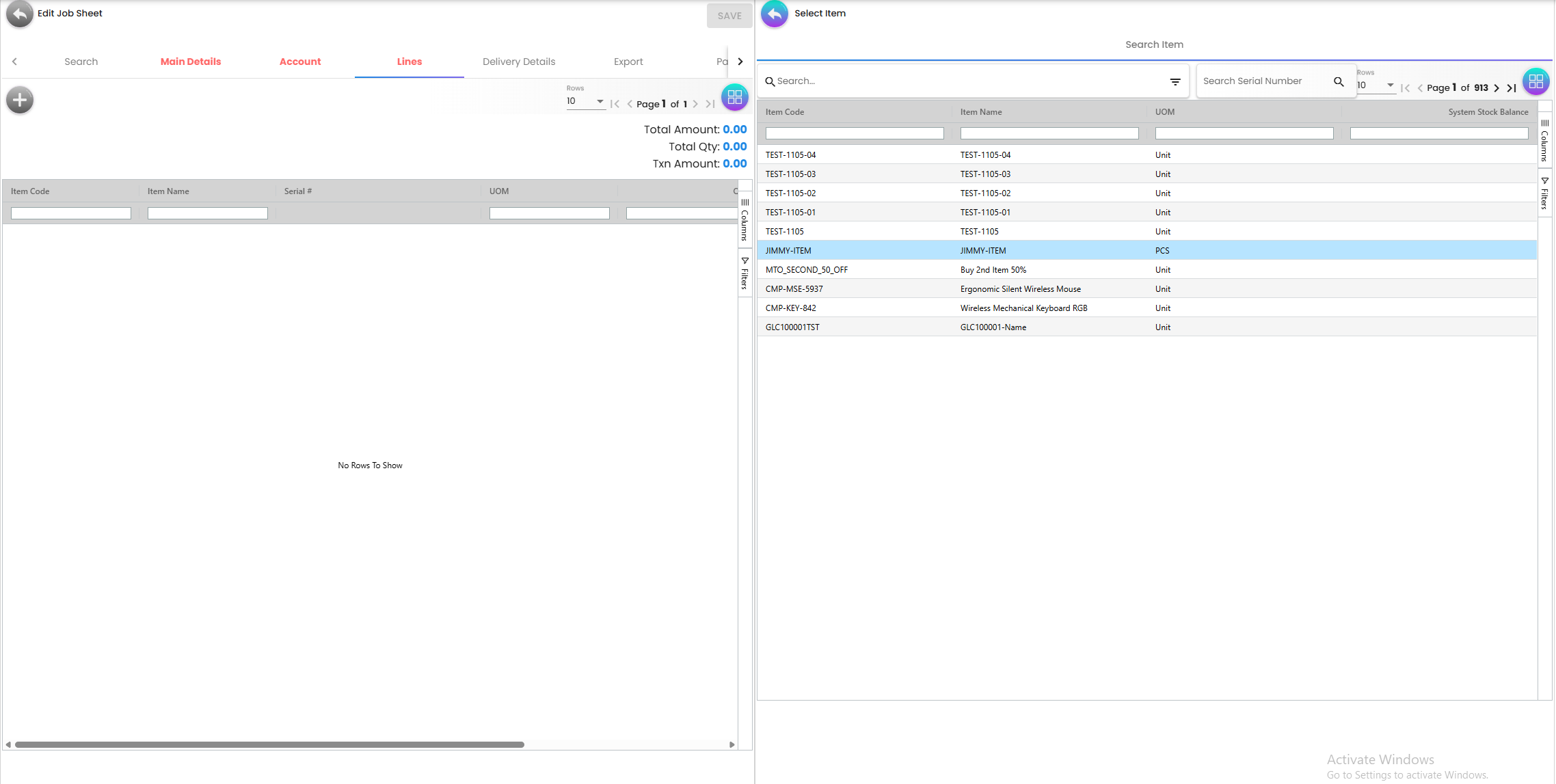

4. Lines Tab

• What it is: The body of the Jobsheet — the detailed list of every service performed, every part used, and every hour billed.
• The Analogy: The Parts & Labour Breakdown on a mechanic’s invoice. Each row is one item: “Engine Oil (2L) — RM 40” or “Labour: 2 hours — RM 100.”
• Key Actions:
  • Add Line — Manually add a new service or part.
  • Edit Line — Modify an existing line item’s quantity, price, or description.
• Accounting Importance: This is the Cost of Goods Sold (COGS) and Revenue Detail. Every line item here directly maps to a product or service in your inventory or service catalog. The system uses these lines to:
  1. Calculate the total billable amount for the Jobsheet.
  2. Deduct stock from inventory if physical parts are used.
  3. Feed the correct revenue account codes when the Jobsheet is converted to an Invoice.

The Line Items sidebar menu provides a separate master listing of all line items across all Jobsheets — useful for managers who need a cross-job view of parts consumption.

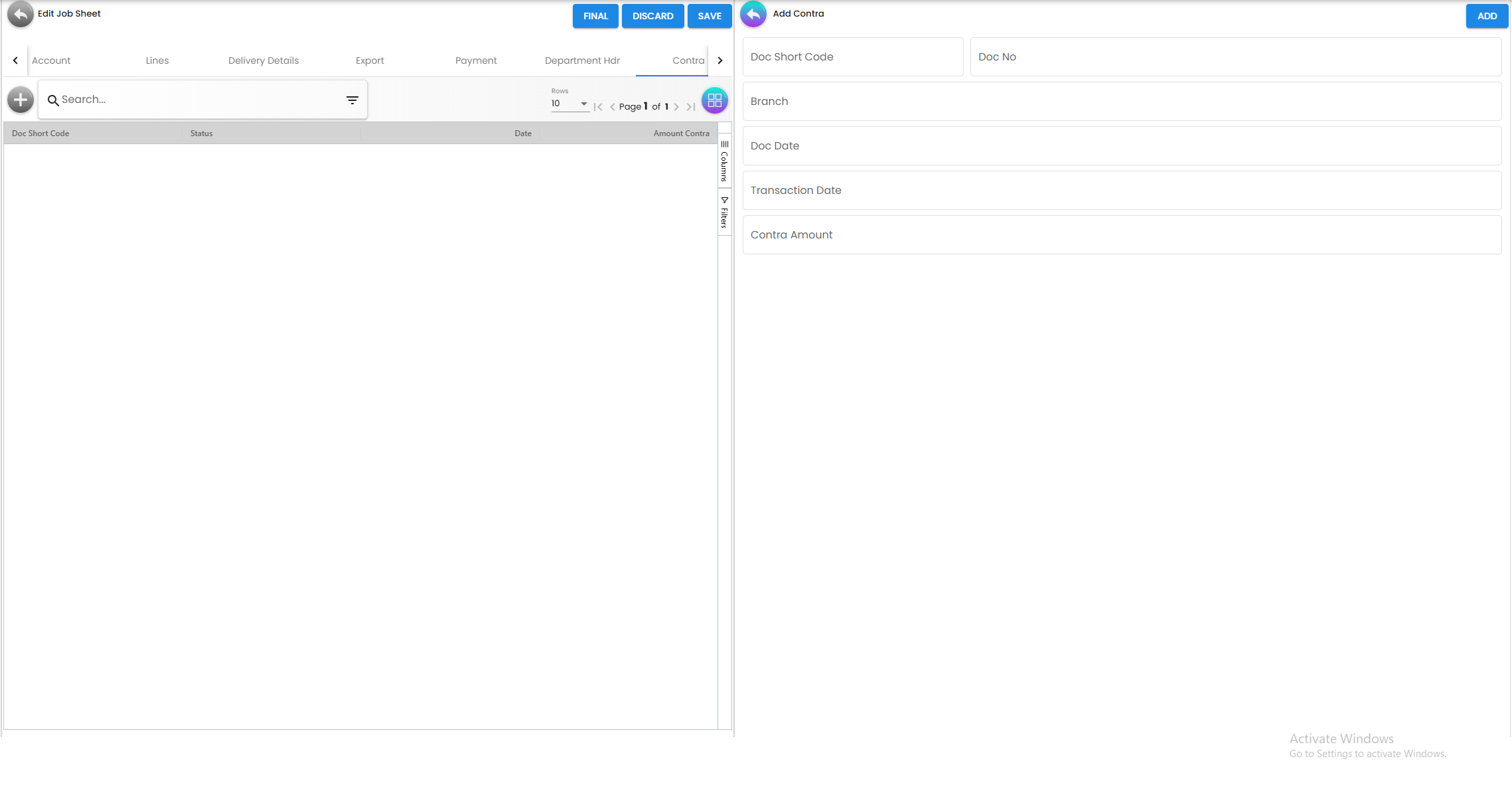

5. Contra Tab

• What it is: A way to offset the Jobsheet’s balance against an existing credit — instead of collecting cash, you “net off” what the customer owes against a credit they already have.
• The Analogy: Imagine a customer overpaid on a previous job and has a RM200 credit sitting on their account. Instead of paying cash for this new job, you apply that credit to reduce the amount owed. That’s a contra.
• Key Actions:
  • Add Contra — Select a source document (e.g., a credit note) to offset against this Jobsheet.
  • Select Document — Browse and pick the credit document to apply.
• Accounting Importance: Contra entries keep the books clean without cash changing hands. Instead of two separate transactions (pay cash, then refund cash), one contra entry settles both sides simultaneously. This reduces bank reconciliation work and avoids unnecessary cash movements.

This tab is available in both Create and Edit modes.

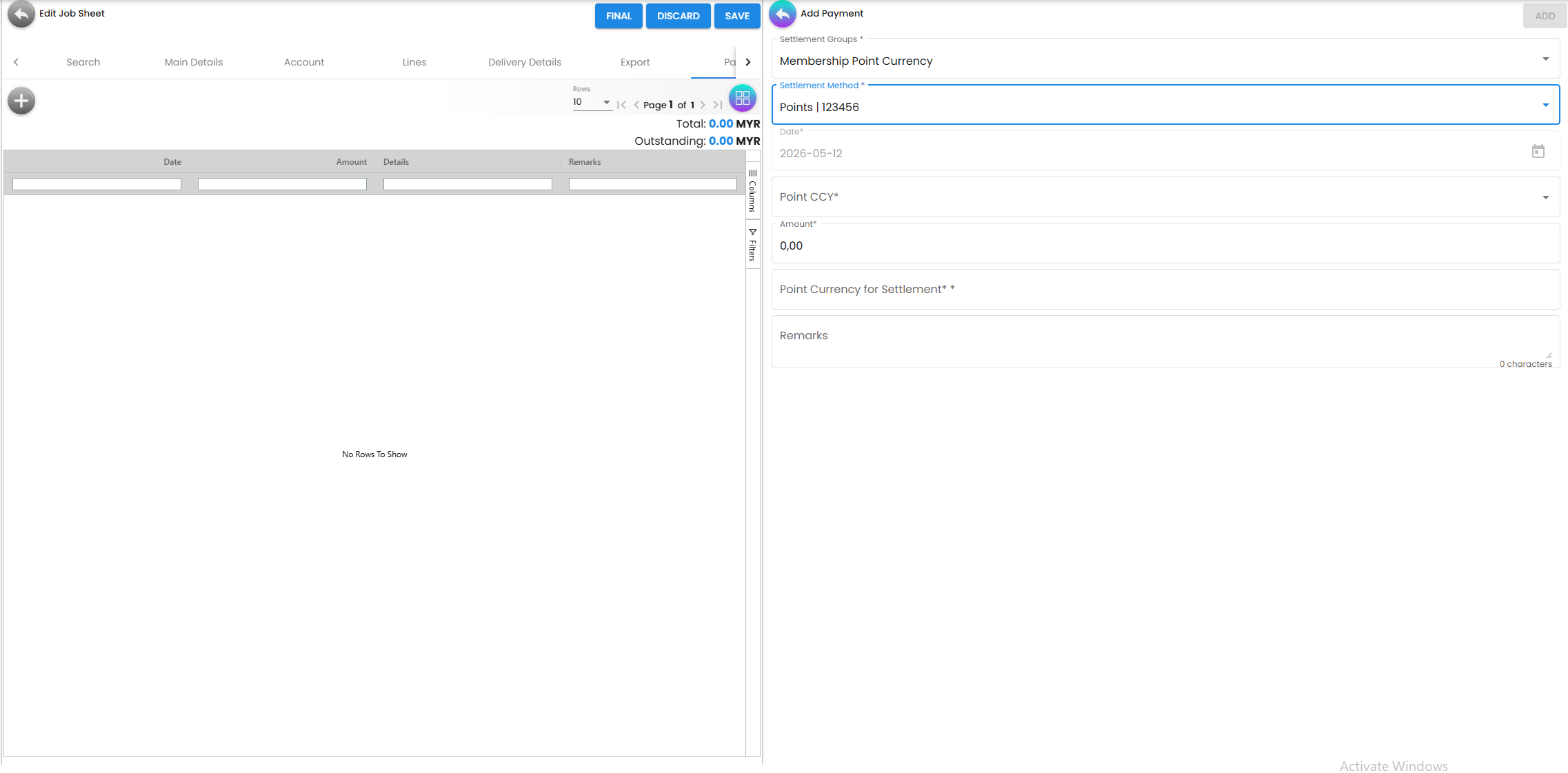

6. Payment Tab

• What it is: A record of any payments received directly against this Jobsheet (e.g., a deposit or full payment collected on-site).
• The Analogy: The Cash Register Receipt given to the customer at the workshop counter before a formal invoice is raised.
• Key Actions:
  • Add Payment — Record a cash, card, or bank transfer payment.
  • Edit Payment — Modify an existing payment record.
• Accounting Importance: Payments recorded here create a Debit to Cash/Bank and a Credit to the Customer’s Account. This is essential for:
  1. Deposit Tracking — If a customer pays 50% upfront, this tab records it so the final invoice only charges the remaining 50%.
  2. Cash Flow Accuracy — Finance can see real-time cash collected from service jobs without waiting for a formal invoice to be raised.

This tab can be hidden via Application Settings if your workflow requires all payments to go through the Invoice Applet instead.

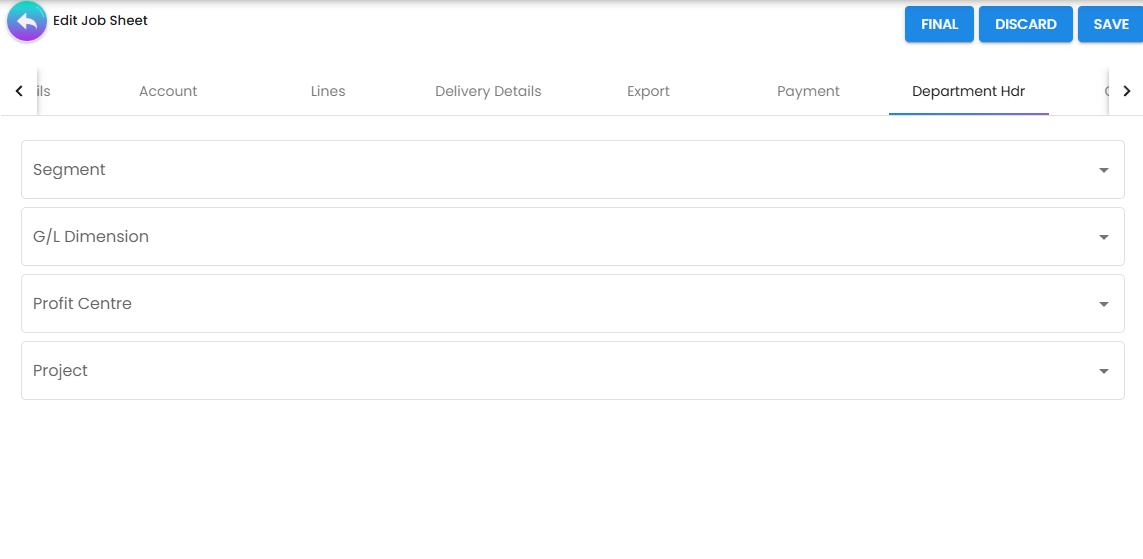

7. Department Hdr Tab

• What it is: Four dropdown fields that tag this Jobsheet to the correct internal team, division, or project inside your company. Think of it like a branch dropdown — but with four levels of detail instead of one.

The simple version: Your company has multiple departments — Service, Sales, IT, etc. When a technician from the Service department completes a job, someone needs to tell the system “this job belongs to the Service department.” That’s all this tab does. At month end, finance can then ask “how much did the Service department earn this month?” and the system already knows, because every job was tagged.

The tab has four dropdowns, each one a different way of labelling who owns the job:

None of these affect the customer or the invoice. They are purely internal labels so management can slice the numbers at month end — by branch, by team, by project — without manually sorting through every job.

This tab can be hidden via Application Settings if your organization does not use these classifications.

Edit-Only Tabs

The following tabs only appear when editing an existing Jobsheet (not during initial creation). They unlock additional capabilities once the record has been saved.

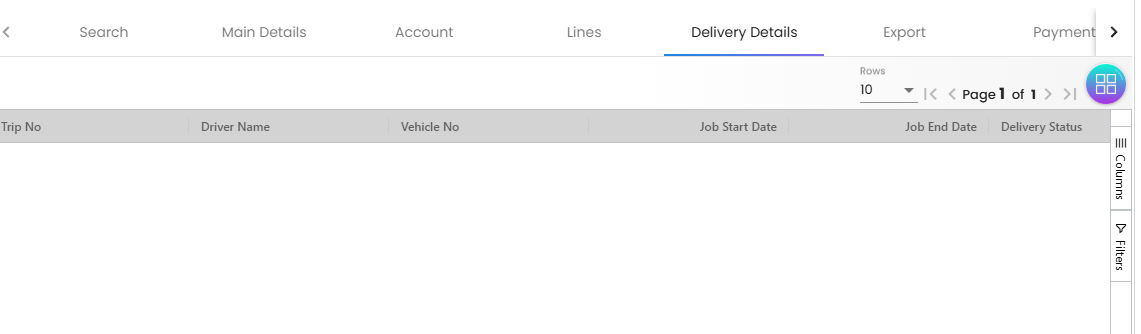

8. Delivery Details Tab

• What it is: A read-only view of delivery records that have been linked to this Jobsheet. You cannot create or add deliveries from here — this tab only displays records that already exist in the Delivery system.
• The Analogy: The Dispatch Log at the back of the workshop — a read-only copy that shows which trips were dispatched against this job. The actual dispatch is arranged by the warehouse, not the technician.
• Why it is empty / why you cannot add anything: Delivery records are created and managed in the Delivery Order (Internal) Applet or Packing Order Applet. Once a delivery is created there and linked to this Jobsheet’s line items, it automatically appears here. If no deliveries have been dispatched against this job yet, the tab will be empty — that is expected behaviour, not a permission issue.
• What the tab shows (once deliveries exist): Trip No, Driver Name, Vehicle No, Job Start Date, Job End Date, Delivery Status, Recipient Name, Qty.
• Accounting Importance: Links the service record to physical stock movements, ensuring inventory deductions are traceable back to the originating job. Prevents stock discrepancies where parts were dispatched but never tied to a document.

9. Attachments Tab

• What it is: A file repository for documents related to this Jobsheet — photos, signed forms, warranties, inspection reports, etc.
• The Analogy: The physical folder clipped to the Job Card at a workshop, containing the customer’s signature, before/after photos, and any warranty paperwork.
• Key Actions:
  • Add Attachment — Upload a file (image, PDF, etc.) to the Jobsheet record.
  • View Attachment — Open and review an existing attached file.
• Accounting Importance: Attachments serve as supporting evidence for audit purposes. If a customer disputes a charge, the signed job approval or photo evidence attached here is the proof that the work was authorised and completed.

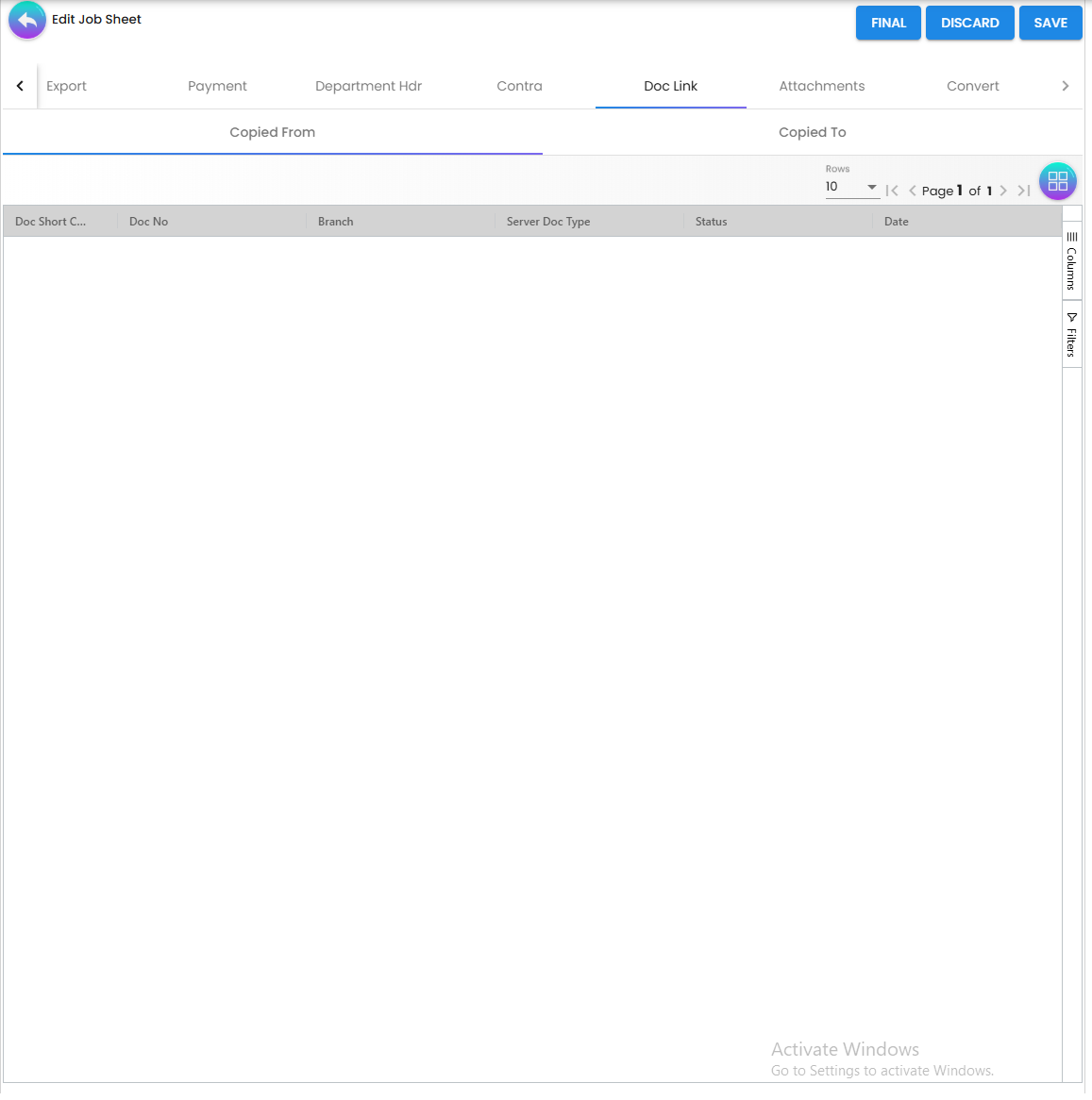

10. Doc Link Tab

• What it is: A traceability panel showing which documents this Jobsheet was copied from and which documents were copied from this Jobsheet.
• Sub-tabs:
  • Copied From — Shows the upstream document (e.g., a Sales Order or Service Note) that this Jobsheet originated from.
  • Copied To — Shows downstream documents (e.g., a Sales Invoice) that were created using this Jobsheet as a source.
• The Analogy: The paper trail on a Job Card — “this job came from Work Order #123” and “this job was billed as Invoice #456.”
• Accounting Importance: This is the Audit Chain. Auditors and finance teams can trace any invoice back to the original service request, and any service request forward to its final billing document. Without this, you cannot prove the full lifecycle of a transaction.

11. Export Tab

• What it is: A PDF export tool for printing the Jobsheet as a formatted document.
• Key Actions:
  • Select a Printable Format (configured in Settings).
  • Click Export as PDF to generate the printable version.
• The Analogy: The Print button — turning the digital Job Card into a physical document you can hand to the customer or file away.
• Accounting Importance: The printed Jobsheet serves as a source document for manual filing and customer sign-off. In some workflows, the customer signs the printed Jobsheet to authorise billing before the invoice is raised.

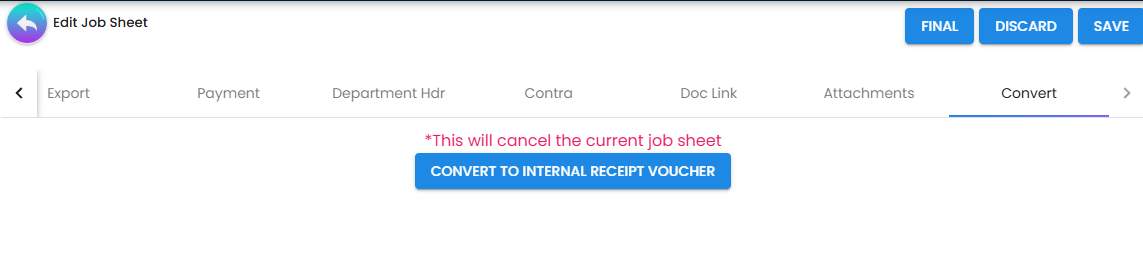

12. Convert Tab

• What it is: A one-click action to convert the Jobsheet directly into an Internal Receipt Voucher.
• Important: This action cancels the current Jobsheet and creates a Receipt Voucher in its place.
• The Analogy: Tearing up the Job Card and replacing it with a Receipt — used when the job was simple enough that a full invoice isn’t needed, just a proof of payment.
• Accounting Importance: A Receipt Voucher is a simpler financial document than an Invoice. Converting to one is appropriate for cash-on-the-spot jobs where no credit terms or formal billing cycle is needed. It closes the job financially in one step.

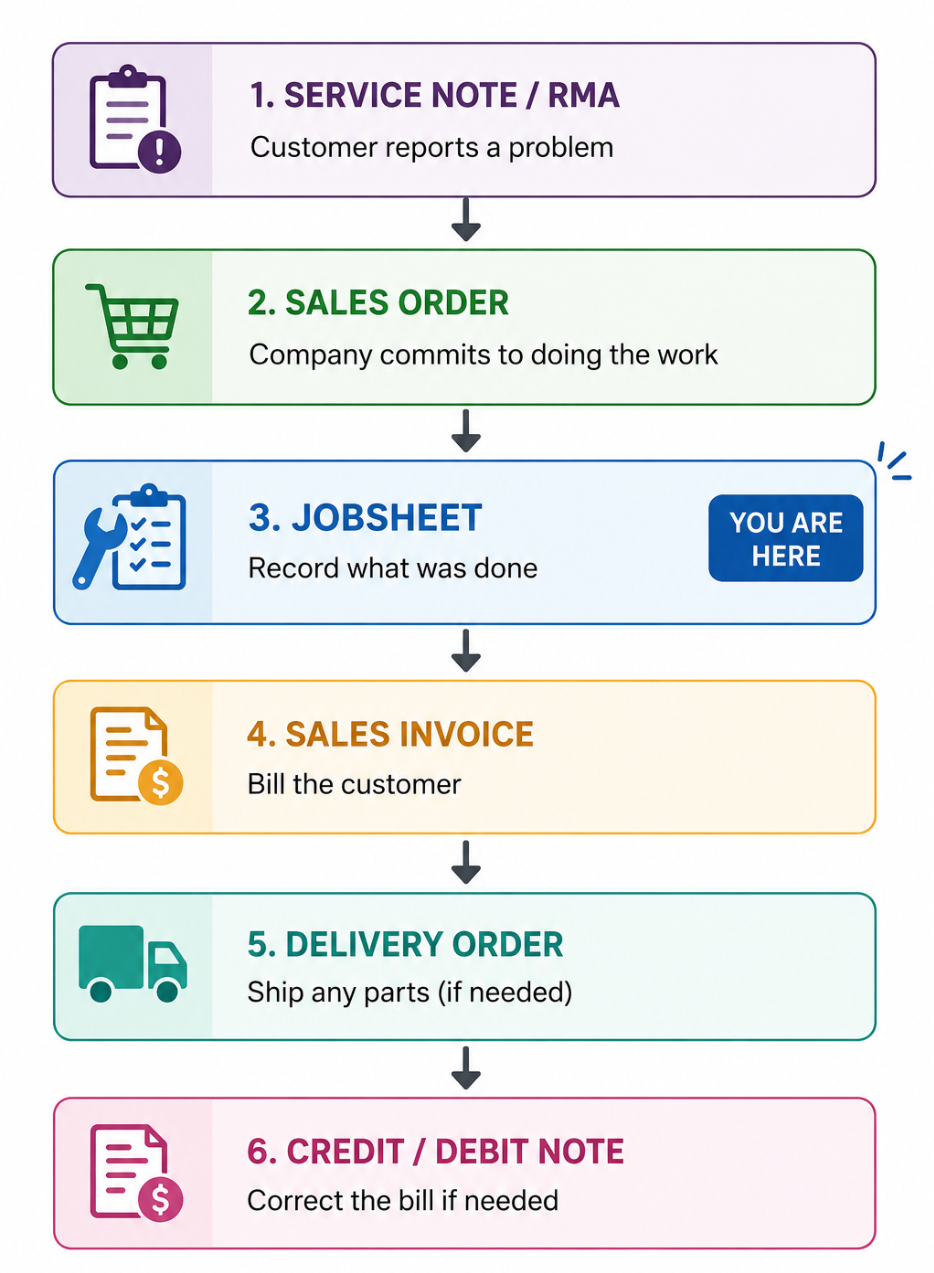

How the Applets Work Together (The Full Service Lifecycle)

To understand exactly where the Jobsheet fits, follow this Record ➡ Quote ➡ Bill ➡ Deliver chain:

1. THE RECORD (This Applet: Internal Jobsheet)

What happens: A technician or service manager opens a new Jobsheet. They document the customer, the work performed, the parts used, and any on-site payments collected.

• Role: This applet is the Workshop Log. It captures the operational reality of what happened.
• Analogy: Writing the Job Card at the workshop.

2. THE QUOTE (Sales Inquiry / Quotation Applet)

What happens: Before or after a job, a sales rep may pull the Jobsheet’s line items into a Sales Inquiry or Quotation to give the customer a formal price estimate. The system allows “Jobsheet Item” as a source when adding lines.

• Role: These applets are the Pre-Sales Desk. They use the Jobsheet as a reference to build a customer-facing price document.
• Analogy: The service advisor showing the customer a written estimate based on the mechanic’s findings.

3. THE BILL (Internal Sales Invoice Applet)

What happens: Once the job is complete and approved, the Finance team converts the Jobsheet into a Sales Invoice. The line items, account details, and pricing flow directly from the Jobsheet into the Invoice.

• Role: The Sales Invoice Applet is the Cashier Counter. It takes the workshop record and turns it into a legal financial claim.
• Analogy: The cashier printing the final receipt for the customer to pay.

4. THE DISPATCH (Packing Order / Delivery Order Applet)

What happens: If the job involves physical goods being sent to the customer (e.g., replacement parts shipped to a site), a Packing Order or Delivery Order can be created using the Jobsheet as a knock-off source.

• Role: These applets handle the Physical Movement of goods linked to the job.
• Analogy: The warehouse team packing and shipping the parts that the mechanic ordered.

Key Takeaway for New Employees

• If you are the one doing the work (technician, service manager)? Use This Applet.
• If you are the one quoting the customer before the job? Use the Sales Inquiry / Quotation Applet.
• If you are the one billing the customer after the job? Use the Sales Invoice Applet.
• If you are the one shipping parts to the customer? Use the Packing Order / Delivery Order Applet.

1. Internal Sales Invoice Applet (The Cashier Counter)

• The Analogy: This is the Cashier who takes the completed Job Card and prints the final bill.
• The Reality: The Sales Invoice Applet pulls line items and account details from the Jobsheet to create a formal, billable document. When you click “Create Invoice,” the ERP links the two documents together.
• Accounting Importance: This is where Revenue is Recognized in the books. The Jobsheet records the cost of doing the work; the Invoice records the income earned. Without this link, your P&L will show costs without matching revenue.

2. Sales Inquiry / Quotation Applet (The Pre-Sales Desk)

• The Analogy: The Service Advisor who shows the customer a written estimate before the work begins.
• The Reality: When adding line items in a Sales Inquiry or Quotation, users can select “Jobsheet Item” as the source — pulling lines directly from an existing Jobsheet. This avoids re-keying data and ensures the quote matches the actual work scope.
• Accounting Importance: Ensures Price Consistency. The quoted price and the actual billed price come from the same source, reducing disputes and credit note adjustments later.

3. Packing Order / Delivery Order Applet (The Dispatch Bay)

• The Analogy: The Warehouse Team that packs and ships the parts ordered during the job.
• The Reality: If a Jobsheet involves physical goods being dispatched to a customer site, a Packing Order can be raised using the Jobsheet as a knock-off source. This links the stock movement to the original service record.
• Accounting Importance: Ensures Inventory Accuracy. Parts consumed during a job are properly deducted from stock, preventing phantom inventory — items that appear in the system but have already been used.

4. Internal Sales Inquiry Applet (The Intake Form)

• The Analogy: The Intake Form filled out before the job even starts — capturing what the customer wants before committing to a Jobsheet.
• The Reality: A Sales Inquiry can reference Jobsheet items as a source for its own line items, creating a traceable chain from initial inquiry through to job completion and billing.
• Accounting Importance: Provides a Complete Audit Trail from the first customer contact to the final payment, which is essential for dispute resolution and revenue forecasting.

Quick Start Guide

Get your team up and running with these standard workflows.

For Technicians: Creating a New Jobsheet

Goal: Document a service visit in 5 simple steps.

1. Navigate: Go to Internal Jobsheet and click "+" (Create)
2. Search First (optional): Use the Search tab to check if a Service Note or prior job exists for this customer.
3. Fill Main Details: Enter the job title, date, assign the Technician, and select the relevant Branch.
4. Set the Account: Go to the Account tab → Entity Details and select the Customer or CRM Contact. Set Bill To and Ship To addresses.
5. Add Services:
   • Go to the Lines tab
   • Click “Add Line”
   • Select the service/item and enter the quantity/amount
6. Save/Submit: Click Save to keep as a draft or Create to finalize the record.

For Managers: Reviewing and Editing

Goal: Ensure job accuracy and departmental alignment.

1. Check Listing: Open the Jobsheet Listing to see all active entries.
2. Review Details: Click on a jobsheet to verify the billing info, shipping address, and line item accuracy.
3. Adjust If Needed: Update the department in the Department Hdr tab or modify line items to correct entries.
4. Finalize: Approve the jobsheet for processing by the finance department.

For Finance: Handling Settlements

Goal: Record payments or apply contras to completed jobs.

1. Locate Job: Open the finalized jobsheet from the listing.
2. Access Finance Tab: Go to the Payment tab.
3. Apply Settlement: Enter payment details or select an existing credit to perform a contra.
4. Verify Balance: Ensure the settlement matches the jobsheet total for accurate accounting.

Configuration & Settings

To tailor the applet to your specific business needs, use the Settings section:

System Configuration

Personalization

Related Applets

The Jobsheet sits in the middle of a wider service-to-cash workflow. Here is every applet that connects to it and what role it plays:

Upstream (feeds INTO the Jobsheet)

Downstream (Jobsheet feeds INTO these)

Adjustment / Correction (after billing)

The Full Picture

[Service Note / RMA]  ←  Customer reports a problem
        ↓
[Sales Order]         ←  Company commits to doing the work
        ↓
[Jobsheet] ◄──────────── YOU ARE HERE (record what was done)
        ↓
[Sales Invoice]       ←  Bill the customer
        ↓
[Delivery Order]      ←  Ship any parts (if needed)
        ↓
[Credit / Debit Note] ←  Correct the bill if needed

FAQ

Q: Can I save a jobsheet partially and finish it later? A: Yes, use the Save button to keep the jobsheet in Draft status. You can return to it via the Listing view anytime.

Q: Can I link a jobsheet to a CRM contact instead of a full Customer record? A: Yes, the applet supports choosing between existing Employees, CRM Contacts, or Main Customer entities in the Account tab.

Q: What is the “Contra” feature used for? A: Contra is used to offset the cost of a jobsheet against an existing credit or another transaction, simplifying the settlement process without needing cash exchange.

Q: Can I track parts used from inventory in a jobsheet? A: Yes, by adding line items that are linked to your inventory master data, you can track precisely which parts were consumed during the job.

Q: How does a Jobsheet become an Invoice? A: Once the Jobsheet is finalized, the Finance team opens the Internal Sales Invoice Applet and creates a new invoice, selecting the Jobsheet as the source document. The line items and account details are automatically pulled across.

Q: Can I see all line items across multiple Jobsheets in one view? A: Yes. The Line Items section in the sidebar provides a master listing of all line items across all Jobsheets, useful for parts consumption analysis and cross-job reporting.

Q: What happens to the Department Hdr tab if my company doesn’t use cost centers? A: You can hide the Department Hdr tab entirely via Application Settings so it does not appear in the Jobsheet form.
